Rebuilt boc edwards GVSP30 (gvsp-30) vacuum scroll pump

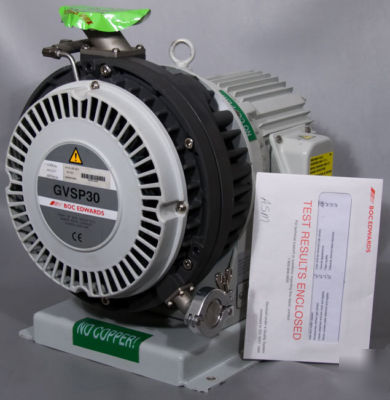

Rebuilt BOC Edwards GVSP-30 Dry Vacuum Scroll Pump
Specifications are from BOC Edwards and may vary slightly due to upgrades, options, or revisions this unit may or may not have.
The Main Serial Number Tag Reads:
The 2nd Serial Number Tag Reads:
Hour Meter Reads: 0.0 (this may change a little bit if someone wants to see it running).
Link to the Manual: Edwards GVSP30 Scroll Pump Manual
The GVSP30 is a compact, reliable vacuum pump designed for use on clean processes. The GVSP30 pump is not suitable for use with explosive, flammable, toxic or corrosive substances, or substances which contain particulates, or powders.
If you want to pump condensable vapours, or if you will regularly use the GVSP30 to pump down from atmospheric pressure in a humid environment (for example, if relative humidity exceeds 60%), you must use gas ballast.
Ultimate Pressure: 1 x 10-2 mbar, 1 Pa
Maximum Inlet Pressure: 1000 mbar, 1 x 105 Pa, 0 psig
Maximum Outlet Pressure: 1150 mbar, 1.15 x 105 Pa, 2 psig
Leak Tightness: < 1 x 10-4 mbar ls-1, 1 x 10-2 Pa ls-1
50 Hz Electrical Supply: 29.5 m3h-1 (17.4 cfm)
60 Hz Electrical Supply: 35.1 m3h-1 (20.7 cfm)
50 Hz Electrical Supply: 25 m3h-1 (14.7 cfm)
60 Hz Electrical Supply: 30 m3h-1 (17.6 cfm)
Gas-Ballast Inlet Connection: 1/8" BSP
Materials Exposed to Vacuum: PTFE (polytetrafluoroethylene) impregnated aluminium, stainless steel, steel bearings, PFPE (perfluoropolyether) grease, fluoroelastomer seals.
Ambient Operating Temperature Range: 5 to 40 C
Ambient Storage Temperature Range: -20 to 60 C
* Picture 8 - Serial Number Tag
