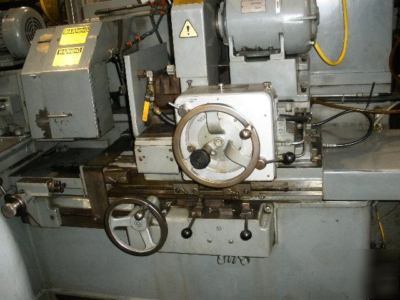

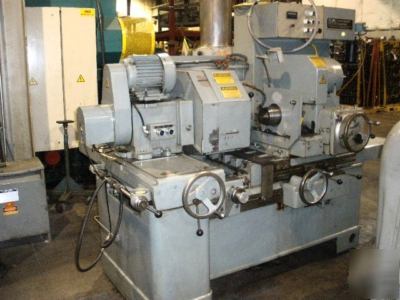

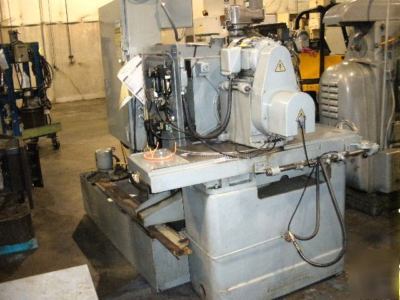

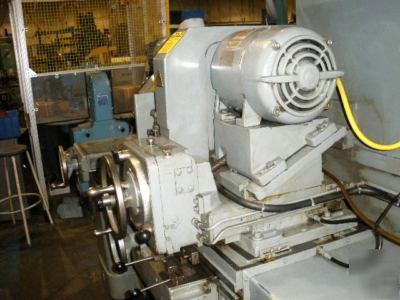

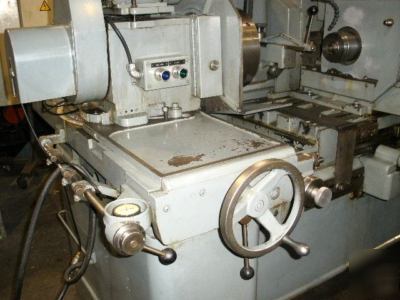

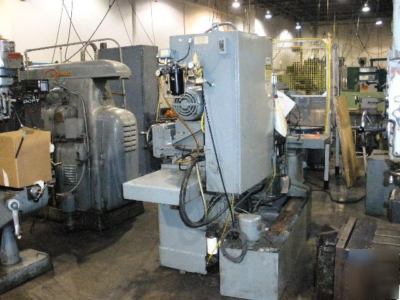

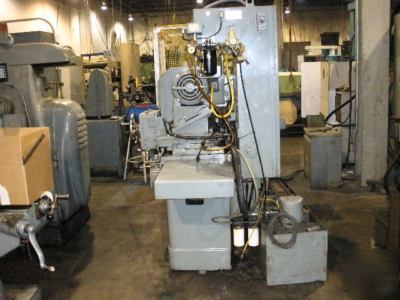

Heald i.d. grinder, model 273A

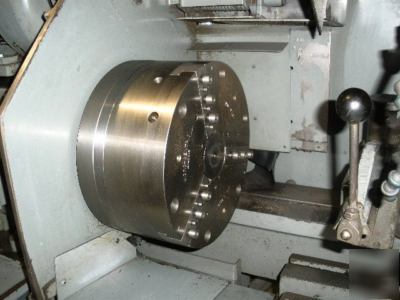

12 Dia. Microcentric Air Chuck
Swing Over Table, Workhead Parallel: 24.5
Swing Inside Coolant Splash Guard: 20
Swing w/ Workhead @ 90 Degrees: 13
Bore Length Ground, Max. : 16
Grinding Stroke, Minimum: .125
Wheelhead Cross-Slide Travel: 1.5
Workhead-Slide Travel, Positioning: 17.5

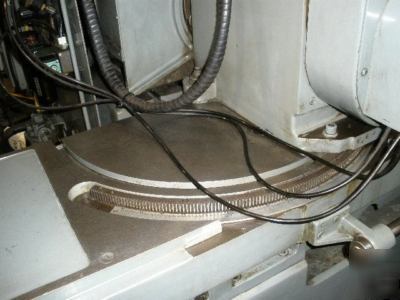

Workhead Swivel Angle, Maximum: 90-Degrees
Workhead Spindle Speeds, Range: 0 to 500 RPM
Grinding Table Speeds, Infinite: 0 to 18 FPM
Power Rapid Table Traverse: 18 FPM

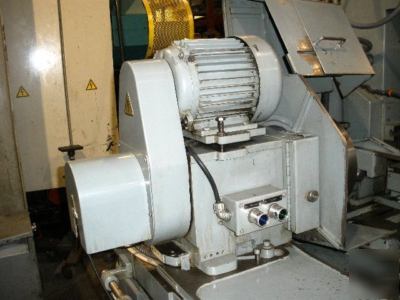

Grinding Spindle Motor, HP: 5 HP/3500 RPM
Workhead Chuck Motor, HP: 1.5 HP
Overall Dimensions W x D: 8 0 x 7 7
Machine was recently rebuilt /upgraded with Allen Bradley 1305 Adjustable Frequency AC Drive, Series C.
