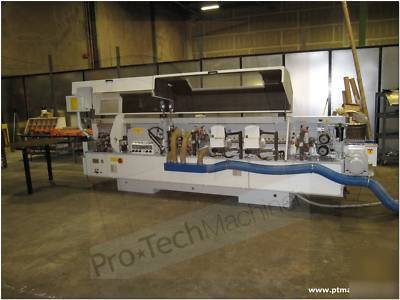

Fravol rx-9 edgebander dmg used woodworking machinery

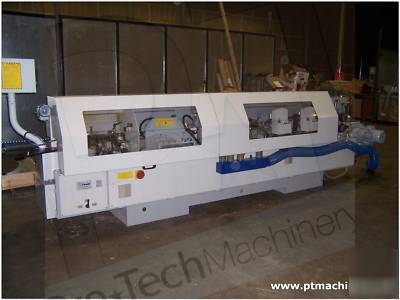

This machine is located in Northern California. This machine can be seen under power and demonstrated by appointment.
The DMG RX Series of Single Side Banders are the flexible and affordable solution.
Whether you're a small cabinet shop processing thin banding, a mid to large shop using 3mm banding, or a large architectural millwork or store fixture using 3/4" solid wood, the RX-9 will work for you!
Check out the walk around video below.
* 15mm capacity edgebanding thickness with 3/4" panel thickness
* 10mm capacity edgebanding thickness with 2-3/8" panel thickness
* minimum panel width of 2-3/8"
* minimum panel length of 4-3/4"

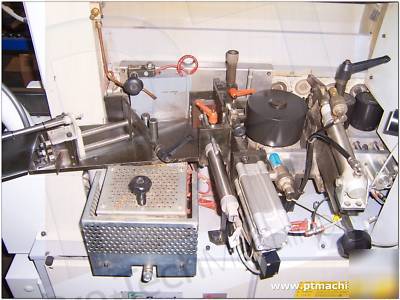

* Automatic strip & coil feed magazine with 3mmPVC guillotine
* Teflon coated hot melt glue pot, glue applicator roller, dual digital thermostats

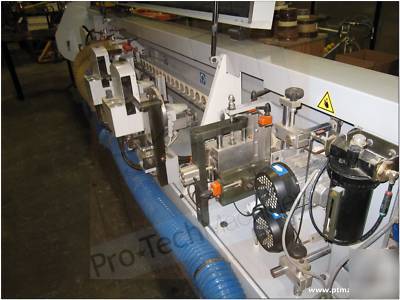

* End trimming: front & rear end trips (1HP 12,000 RPM each)
* motors travel on 45 degree slides and titlabe from 0 to 15 degree

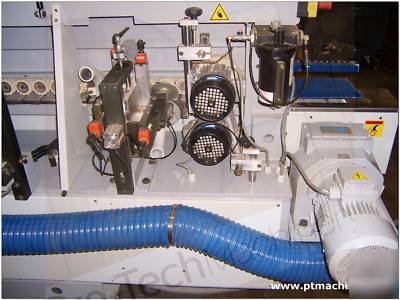

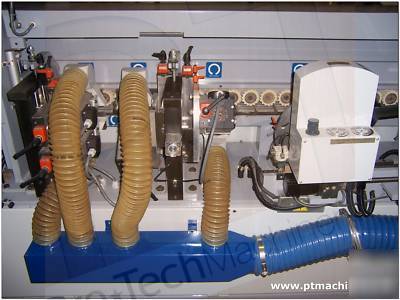

* Top & Bottom Trimming: 1st top & bottom flush trims (1.5HP 12,000 RPM each)
* 2nd top & bottom super finish with bevel up to 45 degree (.5 HP 12,000 RPM each)

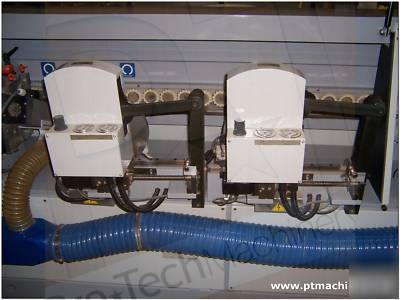

* Cornerrounding; consisting of 2 independent units, one for leading corner and one for trailing corner (1.5 HP 12,000 RPM each)
* Radius top & bottom scrapers for 3mm thick PVC banding, pneumatic positioning and mechanical digital readouts for quick setting and chip collector.
* Top & Bottom Buffing; Tilt and slightly compound the buff angle from 0 to 30 degrees (0.5 HP 1,400 RPM each)
* Feed Speed: Variable speed of 20 to 52 Feet Per Minute
* Complete with PLC Microprocessor control for work stations
* Insulated sound enclosure over all rim stations

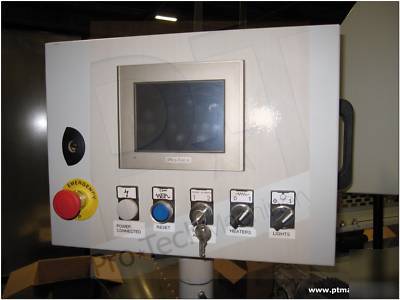

* Rotating operator control panel

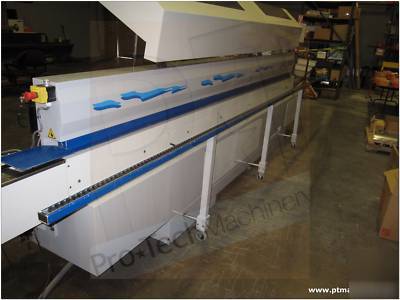

* Extend-able side panel support rail
* Digital frequency inverter
