C-cam cmos imaging camera microscope / machine vision
C-CAM CMOS IMAGING CAMERA MICROSCOPE / MACHINE VISION

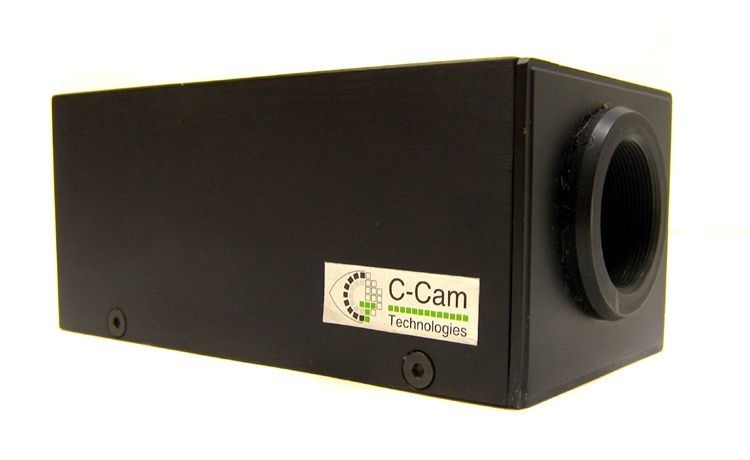

C-CAM Technologies Microscope / Machine Vision Video Camera
IBIS4 CMOS Imaging Sensor Base
1280 x 1024 pixels (H x V)
Monochrome and Colour versions available
Limited Exposure Technology results in Extended Dynamic Range
IEEE-1394 (Fire Wire) interface
The CCi4 camera is one of a series of highly integrated CMOS sensor based cameras. The camera is equipped with the Ibis4 CMOS image sensor from FillFactory 1280 x 1024 pixels (7 m square), better known as an SXGA resolution.
The sensor has a remarkably good signalto-noise ratio combined with an excellent contrast performance. The dark current of the sensor is superior to classical image sensors allowing longer exposure times.
The image sensor utilises Limited Exposure Technology (Patent Pending). This technique prevents over-exposure of brighter parts of an image while preserving excellent contrast in the darker areas of the image. In this fashion the dynamic range is extended from 66 dB to more than 100 dB. The CCi4 camera can switch
between normal and LET mode.
C-Cam Technologies supply the standard PCILVDS card as interface. Any compatible digital frame grabber equipped with bi-directional LVDS interface technology can be used, but in some cases an external power supply is required. The camera supports cables up to 10 metres long.
requirements, e.g. special trigger timing for use with lasers or flash. Additional memory can be used for storing the image and/or performing
The CCi4 camera provides a complete solution for system designers who require a rapid solution with little or no involvement at chip level.
