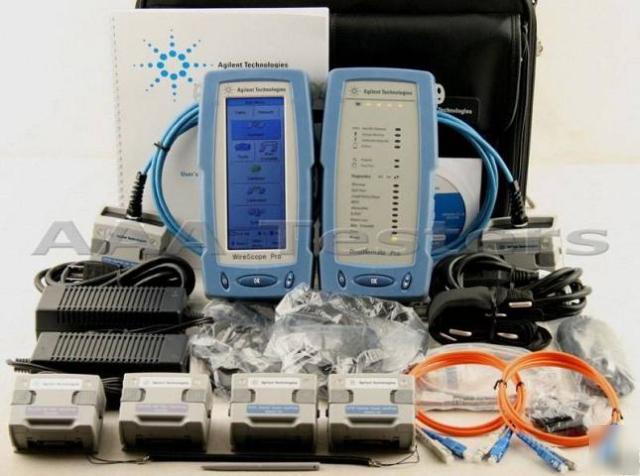

Agilent wirescope pro N2640A CAT6 gig sm mm fiber
* Agilent Wirescope PRO Main N2645A
* Agilent Wirescope DualRemote PRO N2645A
* (2) Cat6a Universal Link SmartProbe N2644A-101
* (2) Cat6a Universal Channel SmartProbe N2644A-100
* (2) Agilent 850/1300 MM Fiber SmartProbe N2647MM
* (2) Agilent 1310/1550 MM Fiber SmartProbe N2647SM
* Stylus Touch Screen Pen With Strap
* Agilent Scope Data PRO II Software
* Carrying Case with Carrying Strap
Agilent WireScope PRO N2640A Cable Analyzer With N2647MM 850nm/1300nm Multimode & N2647SM 1310nm/1550nm Singlemode Fiber Modules.
Test & Certify Cat5, Cat5e, Cat6 & Cat6a Cabling Installations up to 1GHz and Multimode/Singlemode Fiber.
AutoTest Measurement Time Of 9 Seconds (1Mhz - 1Ghz)
Includes N2647MM & N2647SM Fiber Modules, Carrying Case and Full Accessories!
This set Retail's for $14,000, you will be saving tremendously by purchasing this kit!
WireScope Pro An Expandable Platform WireScope Pro supports copper cable certification to TIA Categories 3 to 6A and ISO Classes C to E, Class EA and F limits. Sweeping a full 1 GHz in a few seconds, it boosts Cat 6A and Class F autotest measurement times to industry leading speed, and provides a future proof platform.
The new WireScope Pro extends the WireScope 350's capabilities to Category 6A and Classes EA and F cable certification. Cable and network installers gain maximum productivity through industry-leading measurement time, re-designed fiber probes and a new, simultaneous Alien Crosstalk test method.
The new WireScope Pro is optimized for testing efficiency: industry-leading measurement speed boosts the test throughput. New Fiber SmartProbes cut test times of optical links by eliminating the need to swap fibers for dual wavelength testing and calibration.
Agilent s newly developed Alien Crosstalk (AXT) test solution provides superior AXT measurement performance by employing a new, extremely fast and cost-efficient methodology. The new simultaneous measurement method shortens test times from hours to minutes.
* Cat 3 to 6A/ Class C to E, EA and F copper cable certification
* Test across AC coupled PoE midspan devices
* Multimode and single mode fiber certification for length and loss
* Future-proof through 1 1000 MHz frequency range and software upgradeability
* Optional N2648A Alien Crosstalk Stimulator Kits certify copper links for 10GBASE-T in minutes
* Alien Crosstalk measurement to enable 10GBASE-T
* Real-time spectral analysis of External (Ambient) Noise to characterize cables in a live network
* User friendly with vendor managed cable database, pre-defined settings and a full workday of battery life
* Automatic detection of remote connection improves operator efficiency
* Supports Autotest and continuous measurement
* Talkset for easy communication between operators
* Export test reports into PDF and XML formats
* TIA Categories 3/5e/5/6/6A
* ISO/IEC Classes C, D, E, EA, F
* Alien Crosstalk measurement to certify copper lines for 10GBASE-T
* Available Option: Professional Network Test option for connectivity validation and service availability testing.
* Complies with IEC/ISO Level IV and TIA/EIA Level IIIe accuracy specifications, certified by ETL
* Complies with IEC/ISO Level IV accuracy specifications, certified by ETL
* View the certificate for Cat 6A
* View the certificate for Class F
Multimode and Single Mode Fiber Certification
* Loss and Length up to 8 km (Multimode)/ 50 km (Single Mode)
* Propagation Delay: 300 s Range
* Optical Power: 0.25 dB Accuracy
* New dual-wavelength Fiber SmartProbes eliminate fiber swapping for two-wavelength testing
* Rocket-fast Cat 6A and Class F Autotest measurement time of 9 seconds
* Future-proof 1 1000 MHz range and software upgradeability
* Easy to learn user interface consistent with previous generation
Unique Alien Crosstalk Testing Methodology
Faster Measurement and Optimized Workflow
Once connected, the DualRemote Pro unit operates entirely remote controlled. User interactions, including restarting running tests, happen on the near end only. The re-designed Fiber SmartProbes eliminate the need to swap fibers for dual-wavelength testing and calibration, optimizing the test throughput and accuracy.
Agilent Wirescope PRO N2647MM Multimode 850 nm / 1300 nm Fiber SmartProbes
Dual-wavelength Fiber SmartProbes allow the WireScope Pro to measure length and propagation delay on optical fiber links. Also, they enable high-performance optical loss and power measurement.
*Size: 79.5mm x 64mm x 44mm (3.1" x 2.5" x 1.7")
*Connectors: 2 x SC (Transmitter, Receiver)
*Operating Temperature: 0 C to +40 C
*Storage Temperature: -40 C to +55 C
* Calibrated Wavelengths: 850 nm, 1300 nm
* Measurement Accuracy: +/- 0.25 dB at 20 dBm [1][2]
* Power Measurement Range: 0 to 42 dBm
* Center Wavelength: 850 nm, 1300 nm (nominal)
* Output Power: > 20.5 dBm (into 50/125 ?m fiber)
* Laser Stability: > 19 dBm (typical, into 62.5/125 ?m fiber)
* Cabling Standards ANSI/EIA/TIA 568A, 568.3, ISO/IEC 11801
* Ethernet 10GBASE-SR, -SW, -LX4
* Legacy Networks 1000BASE-SX, -LX, -LX10
* FDDI/Fiber Channel 10BASE-FL, -FB, Token Ring
ATM-155 (UNI 3.1), ATM-155 SWL,
ATM-622, ATM/SONET OC-3, -OC-12
* Accuracy (whichever is greater): +/-2% or +/-3.6 ns
* Measurement Range: 0 to 300 ?s
* Accuracy (whichever is greater): +/-2% or +/-0.72 m
* Resolution: 0.83 m at Refractive Index 1.4785
* Distance Range: 0 to 8 km for 1.50 dB/km at 1300 nm [3]B
[1] At room temperature, 23 C 3K
[3] Assumes double-ended configuration with 12 dB max link loss. Divide by 2 for single-ended configurations.
Agilent Wirescope PRO N2647SM Singlemode 1310 nm / 1550 nm Fiber SmartProbes
1310 nm 30 nm, 1550 nm 30 nm
6 dBm (into 9/125 m fiber)
0.1 dB (1 hour, after 5 minutes warm-up)
ANSI/EIA/TIA 568A, 568.3, ISO/IEC 11801
10GBASE-LR, -LW, -ER, -EW, -LX4
Accuracy (whichever is greater)
0.83 m at Refractive Index 1.4785
0 to 50 km for 1.50 dB/km at 1310 nm
