24" mengele vert-spindle rotary surface grinder #22018

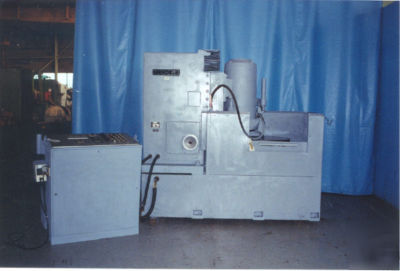

24" MENGELE VERTICAL-SPINDLE ROTARY SURFACE GRINDER
New 1968, Serial No 1067, Model PSM-600
Vertical-Spindle Machine Design
Magnetic Chuck, Diameter................... 24"
Swing Between Coolant-Guards............... 32"
Height Under Grinding Wheel, Maximum....... 9.85"
Segmented Grinding Wheel, Maximum.......... 17"
Number Of Segments......................... 10 SEGMENTS
Spindle Motor, Horsepower.................. 25 HP
Hydraulic Motor, Horsepower................ 7.5 HP
Overall Dimesions, W x D................... 7' x 3'4"
Overall Height............................. 7'
Weight, Approximately...................... 10,582 LBS
PRICE: F.O.B. OUR WAREHOUSE............... $1,450.00
