Snbc btp-2002 thermal printer serial port

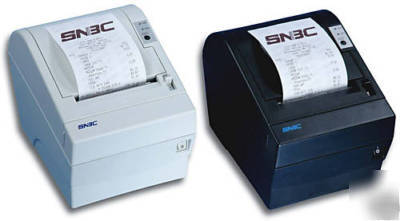

THERMAL PRINTER SNBC BPT-2002NP The heavy-duty metal frame makes the BTP-2002NP thermal printer ideal for rugged environments. A proven product sold and installed for over 5 years that is packed with popular features.
* Serial, Parallel, USB, 485, Ethernet, Wireless Interface
* Print Speed: Up to 200mm/s
* Memory: RAM: 2M FLASH: 1MB
* Printing mode: Standard mode, page mode, bit-image mode
* Print length: No limit at standard mode, max. 150mm at other modes
* Drivers: Windows drivers (WIN98/NT/2000/XP/Vista)
* Cash drawer control 1 to 2 drawers Sensors
* Print head overheating protection
Centronics, RS232C, RS485/422, USB ,Ethernet,Wireless
Connector for one or two cash drawers (use a "Y"cord for two drawers.)
UPC-A, UPC-E, EAN13, EAN8, CODE39, CODE93,Interleaved 2 of 5, CODABAR, CODE128, PDF417
* Standard: 12*24 Compressed: 9*17
* CODE PAGE: 437,850,852,860,863,865,858,866,PC1252,katakana
* User-defined fonts:support,can download to RAM or FLASH
* Rotate (0,90,180,270 angle)
* emphasize, underline, white/black reverse
* Non bit-image mode Print with unit of 24 dots per line
* Bit-image mode The print unit is one dot-line to realize fast speed curve printing
* Bit Image Download:support,can download to RAM or FLASH
* Configuration mode:Save 64 words printer configuration information when power off
* Type: Direct thermal paper
* Width: 57.5,69.5,76,80,82.5mm
* Roll Diameter (max.): 83 mm
* Paper cutting Mode: Automatic cutting or tear off, Full cut, Partial cut
* Input: 100-240VAC, 50-60HZ
* Printer head lifetime 100 Km or more
* Cutter lifetime 1,500,000 cuts (standard thermal paper, 0.06-0.1 mm)
* Dimensions: 144 (W)x 192 (D) x 142 (H) mm
* Operating temperature 5~45degrees
* Operating humidity 20-90%RH (no condensation)
* storage temperature:-40~60degrees
* storage humidity: 20-93%RH(40degrees)
Other Cabinet color : Black
