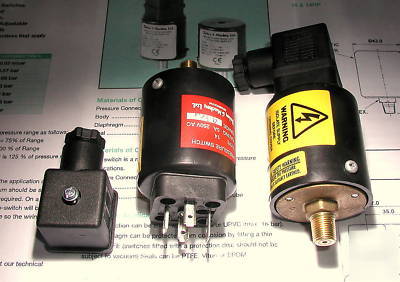

Pressure switch [oil/air/water safety/alarm 0-4BAR 2BAR
Manufacturer: Bailey and Mackey Ltd [UK]
Suitable for water, air, oil, diesel and others NBR compatible media. The medium must not freeze or solidify. Intended for regulating or monitoring of fluid system pressures.
Media contact materials: Beryllium Copper, Nitrile Rubber NBR and Brass
Port Size: Single port on base: standard 1/8" BSP male [G1/8]
Switching Pressure: Factory set at 2bar
Hysteresis [range between switch off and switch on]: 0.3bar
Max fluid temperature: 60degC [for direct contact with fluid].
Electrical Function: SPDT = SPCO [single pole changoever switch] rated 5amp at up to 250Vac max
DIN connector plug ingress protection rating: IP65
For the Electro Controls data sheet [see pages 26 and 27]: http:// /Pressure%20Switches/Resources/B%26M%20Switch%20Catalogue%202009b.pdf
