Optical filter raman edge 780 blk 790+ 24.5MM

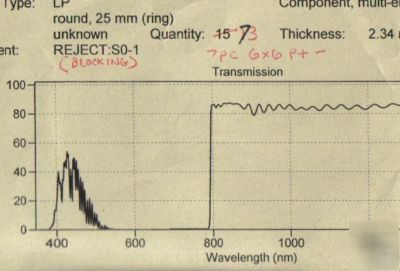

This filter is a very high phase thickness Raman edge filter using Alpha Technology. The theoretical OD is 10++, with a minimum of OD 4.5 at 780nm. Transmission is near unity for wavelengths from 794 to 1200nm.
Filter specs: Size 24.3 dia., by 2mm thick
Blocking UV to 780nm, with OD 4.5 min at laser wavelength
Transmission 794 to 1200nm 80 to 95%
