Okuma 4-axis cnc turning center w/barfeeder & robot

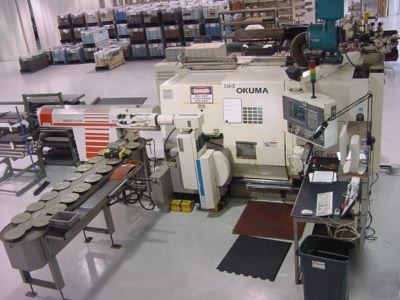

OKUMA IMPACT LU-15 BIG BORE 4-Axis CNC TURNING CENTER
Model LU-152SC-600, New 1997, Stock# K12679

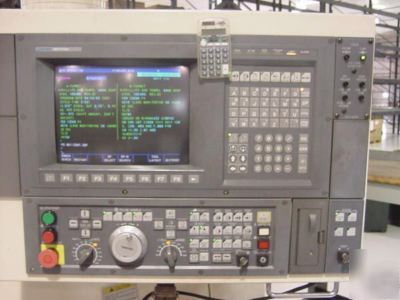

Okuma OSP7000L CNC Control w/Color CRT, DNC-T3 Interface, 3.5" Floppy
Disk Drive, NC Torque Limit, Animation, Lap-4, User Task 2, Expanded
Auto Chamffer, Cycle Time Calculator, Cycle Reduction, 10" Kitagawa

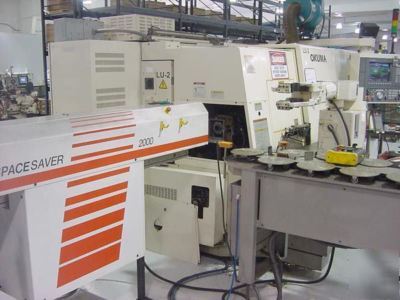

3-Jaw Hydraulic Chuck, Part Catcher, Barfeed Interface, SMW Spacesaver

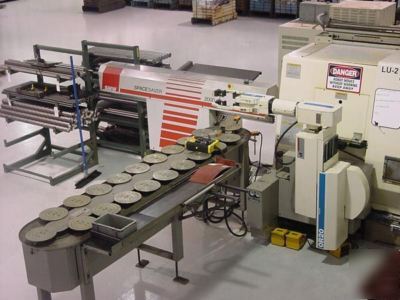

2000 Magazine Bar Feeder, OR20 Part Loading/ Unloading
Robot, Programmable Tailstock Option, Tool Life
Management, 30 HP Spindle, 2.75" Bar Capacity Option, 12 Position Upper
and 8 Position Lower Simultaneous Tool Turrets (20 Total Tools), Spindle
Orentation, NC Torque Limit, Chip Conveyor and Coolant System.
Max Swing Over Slant Bed .................................... 22"
Max Turning Diameter......................................... 14.17"
Max Machinable Center Distance............................... 23.62"
Cross Travel (X-Axis) Upper Slide Above Center....... 11.6"
Lower Slide Below Center ...... 7.6"
Longitudinal Travel (Z-Axis) Upper Slide.................... 29.6"
Lower Slide ................... 21.4"
Feed Range X & Y-Axis (Infinetly Variable) .................. 400 IPM
Rapid Traverse Rate X & Y Axis .............................. 400 IPM
Tool Positions (12-Upper & 8-Lower).......................... 20 Total
Barcapacity............. ................................................ 2.75"
Spindle Speed Range ......................................... 4500
Spindle Horsepower........................................... 30 HP
Approximate Machine Dimensions............................... 189" x 78"
Approximate Machine Height................................... 79"
Approximate Machine Weight................................... 24,000 LBS
