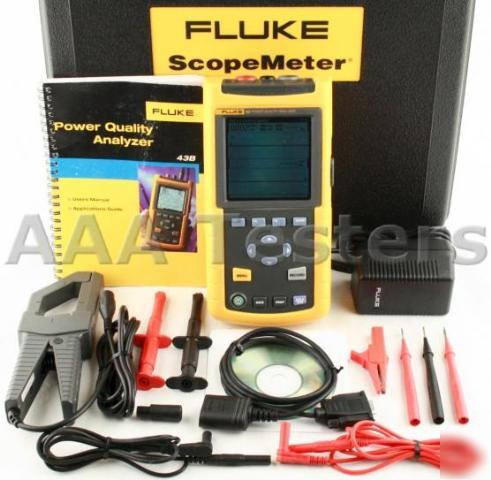

Fluke 43 handheld power quality analyzer meter 43B
* Fluke 43 HandHeld Power Quality Analyzer
* Fluke 80i-500s AC Current Clamp
* Fluke TL24 Test Leads (1 Red - 1 Black)
* Fluke AC20 Industrial Alligator Clip (1 Red - 1 Black)
* Fluke TP1 Flat Blade Pins (1 Red - 1 Black)
* Fluke TP4 4mm Test Pins (1 Red - 1 Black)
* Fluke AC85A Large Jaw Alligator (Red)
* Fluke PM9080 Optial Interface Cable
* Flukeview Power Quality Analyzer Software SW43W
This Item Has A Current Calibration!
Fluke 43 HandHeld Power Quality Analyzer
80i-500s AC Current Clamp, Hard Carrying Case & Complete Accessories Included!!
Warranty: 90 Day Exchange Warranty
The Fluke 43 is a single phase power quality analyzer which combines the most useful capabilities of a power quality analyzer, multimeter and scope. It measures power harmonics, captures voltage sags, transients and inrush current. The Fluke 43's monitoring functions help track intermittent problems and power system performance.
The Fluke 43 Power Quality Analyzer performs the measurements you need to maintain power systems, troubleshoot power problems and diagnose equipment failures.
* New! NiMH Battery provides extended operating time of 6.5 hours
* Combines the most useful capabilities of a power quality analyzer, multimeter and scope
* Simulates 3-phase power (assuming balanced loads) from a single-phase measurement
* Trends voltage, current, frequency, power harmonics and captures voltage sags, transients and inrush current
* Monitoring functions help track intermittent problems and power system performance
* Menus use familiar electrical terminology
* New! Toggle through the most commonly used power quality modes with a single keystroke
* Records two selectable parameters for up to 16 days
* New! 20 measurement memories to save/recall screens and data with cursor readings
* FlukeView software can log harmonics and all other readings over time and provides a complete harmonics profile up to the 51st harmonic
* Measures resistance, diode voltage drop, continuity, and capacitance
* Users / applications manual and power quality video to help answer tough questions
* Complete package with voltage probes and 500A current clamp, FlukeView
* Software and optically isolated interface cable
Voltage Rating: 600V rms, CAT III
Ranges: 5.000V, 50.00V, 500.0V, 1250V*
Ranges: 50.00A, 500.0A, 5.000 kA, 50.00 kA
Ranges: 250 W, 2.50 kW, 25.0 kW, 250 kW, 2.50 MW, 250 MW
Displacement Power Factor, DPF
Range: 0.00 to 0.25 Accuracy: Not specified
Range: 0.25 to 1.0 Accuracy: 0.04
Accuracy: (3% +2 counts) to (15% +5 counts)
Accuracy: (3% +8 counts) to (5% +8 counts)
Accuracy: (5% +2 counts) to (30% +5 counts)
Ranges: 40 Hz to 70 Hz fundamental
Recording times: 4 min to 16 days (selectable)
V/A/Hz: Line voltage, current, frequency
Power: Watts, VA, VAR, PF, DPF, frequency
Harmonics: THD, harmonic voltage, (or current, or power), frequency, % of total, phase
Ohms: Ohms, diode, continuity, capacitance
Scope: DC voltage, dc current, ac voltage, ac current, frequency, pulse width, phase, duty cycle, peak max, peak min, peak min-max, crest factor
Voltage threshold settings: 20%, 50%, 100%, 200% above or below normal voltage
Min voltage and max voltage at cursor:
Ranges: 10V, 25V, 50V, 125V, 250V, 500V, 1250V
Current ranges: Ranges: 1A, 5A, 10A, 50A, 100A, 500A, 1000A
Inrush times: Ranges: 1s, 5s, 10s, 50s, 100s, 5 min
Cursor readings, Current at cursor
Ranges: 12.5A, 25A, 50A, 125A, 250A, 500A, 1250A, 2500A, 5 kA
Ranges: 4 to 235 pixels (1 pixel = inrush time/250)
Time ranges: Ranges: 20 ns/div to 60 s/div
Max sampling rate: Ranges: 25 MS/s
Voltage channel [1]: 20 MHz at inputs, 1 MHz with TL24 Leads
Current channel [2]: 15 kHz at inputs, 10 kHz with 80i-500s Probe
Vertical sensitivity: Ranges: 5 mV/div to 500V/div
Vertical resolution: 8 bit (256 levels)
Record length: 512 samples per channel
Timebase modes: Normal, roll, single
Pre-trigger: Up to 10 divisions
Measurements: dc, ac, ac+dc, peak, peak-peak, frequency, duty cycle, phase, pulse width, crest factor
Ranges: 500.0W, 5.000 kW, 50.00 kW, 500.0 kW, 5.000 MW, 30.00 MW
Diode voltage: Accuracy: (2% +5 counts)
Continuity: Beeper on at < (30W 5W)
Ranges: 50.00 nF, 500.0 nF, 5.000 F, 50.00 F, 500.0 F
Ranges: -100.0 C to 400.0 C, -200.0 F to 800.0 F
Optically Isolated RS-232 Interface
Supports HP Laserjet , Deskjet , Epson FX/LQ and Postscript printers with optional PAC91 Printer Adapter Cable
FlukeView Power Quality Analyzer Software included
FlukeView Power Quality Software
PC or 100% compatible with Windows 3.1, Windows 95, or Windows NT . Enough RAM for Windows operating system. 4 MB hard drive space. Pointing device (mouse) recommended.
