Flir near infrared nir ingaas thermal imaging camera
Similar InGaAs Thermal Cameras sell for $20,000 USD.
Our Price for this camera is $9995, Well below our competitors price of $20,000 for similar systems.

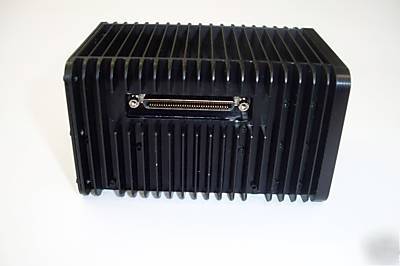

Alpha NIR FLIR InGaAs Thermal Imaging Camera
We offer separate thermography training courses and are happy to answer any questions you may have about our infrared cameras and your particular application. Please contact us for more information at:
The ICI NIR infrared camera employs a 320 x 256 Indium Gallium Arsenide focal plane array, allowing the camera to be highly sensitive to energy in the near-infrared (NIR) and short wave infrared (SWIR) wavebands from 0.9 to 1.7 microns, well beyond the range of silicon CCD cameras.
Indium Gallium Arsenide (InGaAs)
30Hz (Real-time, 12-bit, Parallel)
0 40 C (32 F to 104 F)conduction, 0 35 C (32 F to 95 F) still air Humidity 95% Non-condensation
(L x W x H) 3.7 x 2.5 x 2.1 (93.98mm x 63.5mm x 53.34mm)
350 grams (12.4 oz), excluding lens
Temperature Measurement Points
C- Mount (several lenses available - no lens included)
Please note most Fix Mounted Units can be converted to Pan & Tilt Units and vice versa
Alpha Near Infrared (NIR) InGaAs Camera
Alpha NIR Near Infrared Thermal ImagerNIR Near Infrared InGaAs Thermal Imager
The ICI NIR infrared camera employs a 320 x 256 Indium Gallium Arsenide focal plane array, allowing the camera to be highly sensitive to energy in the near-infrared (NIR) and short wave infrared (SWIR) wavebands from 0.9 to 1.7 microns, well beyond the range of silicon CCD cameras. The ICI NIR is suited for detection of telecommunication laser radiation, particularly in the S, C, and L DWDM wavebands. Other users include: fiber alignment/inspection; laser beam profiling; and optical measurement and testing.
The Indium Gallium Arsenide detectors are highly resistant to damage from intense lasers, allowing direct illumination onto the focal plane for beam profiling. Integration times can be set to provide a very wide dynamic range. This range allows users to measure all aspects of a laser beam profile from the peak to the outer fringes without attenuating the laser signal.
The ICI NIR is also suitable for many other industrial NIR applications such as IR reflectography, imaging through paints, chemical imaging, and agricultural inspection based on water detection. Small near infrared solutions for industrial applications, research, and testing.
ICI NIR Near Infrared Camera Specifications
* 320 x 256 InGaAs focal plane array
* Snapshot readout with external triggering
* Continuously variable integration times
* Compact solid state design
View ICI Alpha NIR InGaAs Thermal Imager Specifications
Download Alpha NIR InGaAs Thermal Imager Specifications PDF
Download Alpha NIR InGaAs Thermal Imager Specifications (High Quality) PDF
