> Bridgeport ez-trak dx manual/cnc mill mint 1998
Bridgeport ez-trak dx manual/cnc mill mint 1998
Hallidie Machinery Co., Inc. is proud to offer for your consideration an USED 1998 Bridgeport EZTRAK Milling Machine. This unique machine combines the world renowned Series I Standard Milling Machine, modified to include ballscrews and DC servo motors on the X and Y axes, with a Bridgeport manufactured 2-axis, CNC control. (A full contouring 3rd axis is optionally available) This control is much easier to use than conventional CNC equipment, yet it is far more productive than manual machining. EZTRAK takes all of the most difficult machining operations to set-up and process and automates them with no additional set-up required. As we have for over 60 years, Bridgeport Machines continues to stand behind every machine it builds with parts, service and applications support as well as one of the best warranties in the industry. With these traditions in mind we are pleased to present the following quotation for your consideration and look forward to the favor of your order.

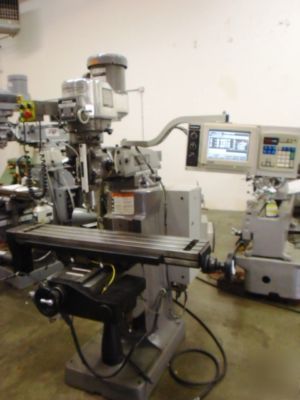

The Bridgeport EZTRAK Milling Machine includes the following standard features:
Z-axis 5" (127mm) (w/ 3rd axis option 4.5" (114mm))
* 3 hp (30 minute), 2 hp (continuous) duty rated, AC induction spindle motor with spindle brake
* Infinitely variable spindle speeds: Low gear: 60-500 rpm; High gear: 500-4200 rpm
* Optional, fully programmable contouring 3rd axis
* R-8 spindle taper Collet capacity 3/4" (#30 Quick-Change or 200 Kwik-Switch spindle option available)
* Spindle guard included standard (Full table guard optional)

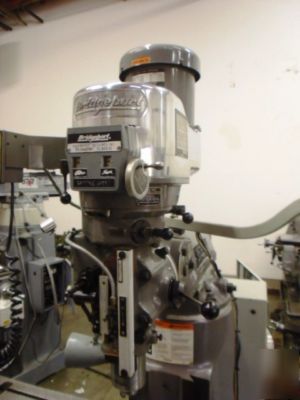

* Chrome/Nickel alloy spindle is heat treated and ground with precision bearings, preloaded and accurately spaced for maximum radial and thrust capability.
* Quill is 3 1/8" dia, hard chrome plated, and hand lapped for extreme accuracy and long life. Quick release micrometer depth adjustment

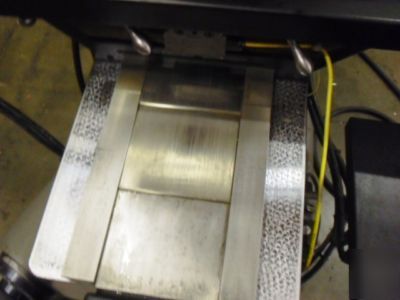

* Chrome plated ways are standard to maintain inherent accuracy, includes plating on the Back of the knee;
Column knee gib; Top of the knee; Top of the saddle; Saddle table gib.
(.002 deposit; exceeds Rockwell C-70)

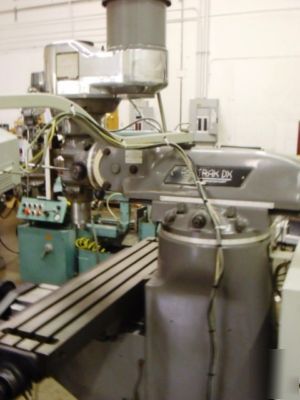

* V-ram with 12" of rack & pinion travel; expanding dovetail locks ram and turret into one unit to prevent vibration
* 360 degrees of ram/turret rotation
* Worm and gear controls used for angular settings of the head: 90 degrees left & right; 45 degrees front & back

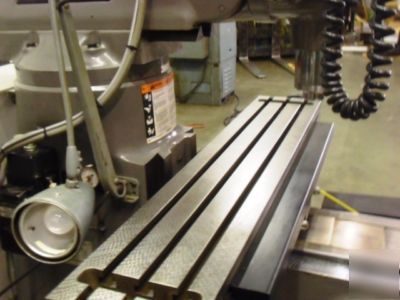

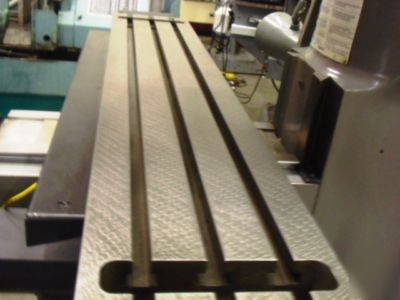

* 9" x 48" precision ground and hand spotted table with dual locks
* Large 1 1/4" diameter, .2" pitch ballscrews with stiff mounting brackets
* Servo Power feeds on X and Y axes with 100 ipm rapid traverse rates
* Feedrates to 100 ipm, variable from 10% to 150%
* 300 pound table load capacity
* .0001" (.001mm) input resolution
* +/-.001" positioning accuracy over the saddle
* +/-.0008" repeatability over the saddle
* One-shot automatic central lubrication system
* Machine conforms to NFPA-79 specifications w/NEMA 12 enclosure
* Color: Bridgeport machine tool gray
* Space & weight: 98 x 87 x 82." 2,340 Lbs.

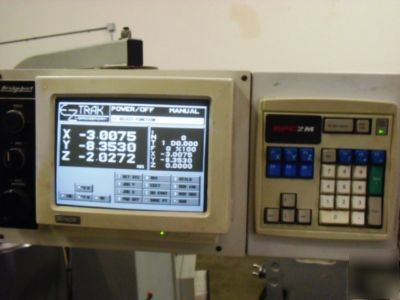

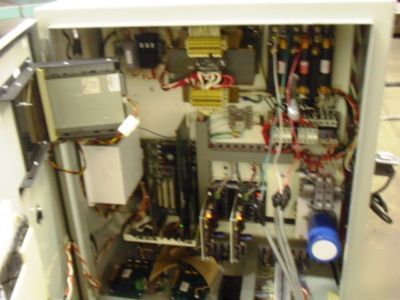

EZTRAK Control Specifications: (Bridgeport BPC2M)
* Bridgeport manufactured 2-axis BPC2M control (3-axis control optional)
* Simultaneous 2-axis linear or circular interpolation for machining arcs and diagonals
* 1,000 events of program storage with display
* Conversational display that prompts for all program data and also signals the operator when action is required
* Absolute and incremental programming or a combination for easy input of dimensions directly from a blueprint
* Math Help mode calculates line, arc and circle intersections
* Powerful canned milling and drilling cycles for machining circular pockets, rectangular pockets, frame milling, slots, bolt hole patterns, and more
* Automatic corner rounding for inside and outside corners
* Cutter diameter compensation
* Graphics preview feature for program verification
* Teach mode for storing manual moves
* Full 3-axis DRO for manual operation
* Remote stop/start control device
* 8mb 'Disk on a chip' technology
* 1.44Mb HD Floppy Disk Drive Option
* RS-232C serial communications port
* Maintenance diagnostic and program error message display
One - Bridgeport EZTRAK with 48" table - $12,250.00
We hope that this quotation suits your requirements, however, if you should have any questions, please don't hesitate to contact me.
