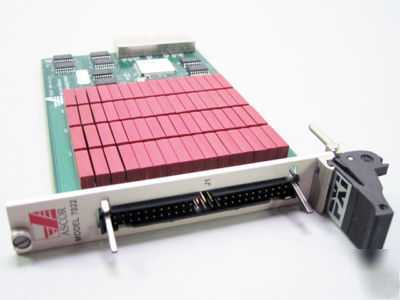

Ascor 7022 pci/pxi switch matrix array module
ASCOR 7022 PCI/PXI SWITCH MATRIX ARRAY MODULE
The 7022 is a 4 x 16 single-wire matrix shielded switch with a current rating of 1.5A, crosstalk/voltage of -50dB @ 50 MHz, and bandwidth/switching power of >70 MHz with insertion loss of -55dB @ 50 MHz.
* Operating temperature of 0 C to 55 C and storage temperature of -40 C to 75 C
* Relative humidity for operation is 10 to 90% and for storage 0 to 95% non-condensing
* The switches have received CE certification
