2000 marvel #8 mark ii tilt frame vertical band saw

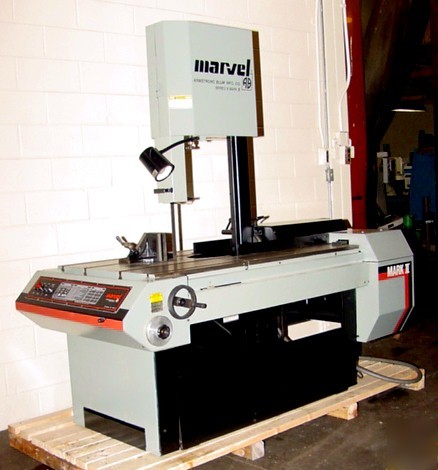

2000 MARVEL #8 MARK II TILT FRAME VERTICAL BAND SAW
18" X 20" MARVEL TILT FRAME VERTICAL BANDSAW
MODEL: SERIES 8 MARK II, S/N: 828072, NEW: 2000
NORMAL ................... 18" X 20"
MAX ...................... 18" X 22"
BLADE @ 45 deg (NOMINAL) . 18" X 12-3/4"
BLADE @ 45 deg (MAX) ..... 18" X 13"
TABLE WORKING SURFACE .......... 24-1/4" X 33"
TABLE HEIGHT ................... 34-1/2"
TEE SLOTS NUMBER ............... 4
MAX VISE OPENING ............... 21"
HEIGHT OF VISE JAWS ............ 6"
FEED RANGE ..................... 0-140 LBS
VARIALE SPEED RANGE ............ 50-450 FPM
BLADE SIZE ..................... 14'6" x 1" x .035" THICK
BLADE WHEEL DIAMETERS .......... 18"
APPROX. MACHINE DIMENSIONS ..... 54-1/2"W x 90"D x 84-1/2"H
APPROX WEIGHT .................. 2,870 LBS
- 2 HP 3/60/230-460 VOLT MOTOR AND CONTROLS (SET FOR 460V)
