> Phd SMH1-08X-1-ae-ar-m pneumatic linear slide
Phd SMH1-08X-1-ae-ar-m pneumatic linear slide

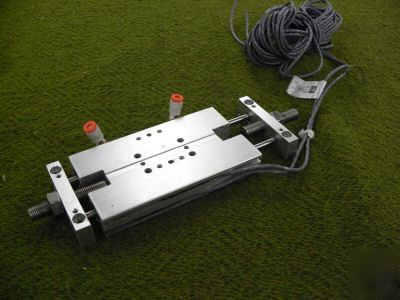

Slide with modular base, Polymer bushings, Imperial dimensions, 8 mm od bore, 1 inch travel, Travel adjustment and shock pad in position 5+6, Magnetic piston, two piston sensing proximity sensors (model 67904-1-05) installed.
http://litstore.phdinc.com/pdf.asp?filename=SM.pdf
* Series SM Slides provide smooth linear motion at twice the thrust of a single bore cylinder.
* Available in five bore sizes with a choice of three travel lengths to fit a wide range of applications.
* Optional travel adjustments and shock absorbers can provide precise adjustment of travel.
* Units with precision ball bushings provide more rigidity and carry a heavier load at higher velocities.
* Units with polymer bushings cost less and provide quieter operation.
* Available in both imperial and metric versions for applications in worldwide markets.
* Fully integrated shock absorbers or travel adjustments with shock pads allow easy adjustment of travel without increasing overall package length. (External shock absorbers and travel adjustments available on size 8mm)
* Slide body incorporates twin switch slots for flush installation of PHD's Series 6790 Reed and Solid State Switches.
* All units are 8mm proximity switch ready using external mounting kits. This prevents flexing of the electrical connectors of the switches.
* Modular mounting pattern on slide housing allows quick connect with Series STP slides without the need for transition plates.
* Standard stainless steel fasteners eliminate the need for costly corrosion resistant options. Combined with -Q6 shaft option provides a completely corrosion resistant unit.
* Optional porting through the guide shafts allows the housing to move without flexing the incoming air lines. (Not available on size 8mm)
* Wider shaft spacing reduces the amount of deflection in roll moment applications.
