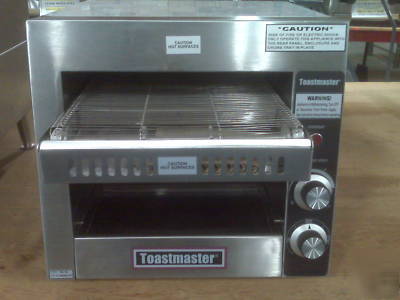

New toastmaster conveyor toaster save
Stainless steel exterior construction
Air-cooled case construction
Convection air dries product faster
Large, easy-to-operate dial controls
Separate upper and lower heat settings and conveyor belt speed
High volume (250 slices per hour)
Factory installed NEMA cord and plug
Single-piece stainless steel crumb tray
Damage resistant calrod heating elements
All models toast bread, buns and bagels
TC13 Mini Conveyor Toasters are designed to uniformly toast breads in large quantities, using continuous feed methods.
Chamber opening 1-1/2 (38.1mm)
12-3/4 Long (323.85mm) x 10-1/4 Wide (260.35mm)
Requires approx. 14-1/4 of counter space
TC13 is equipped with a self-storing loading rack that is angled for feed the product into the toaster continuously.
Unique air flow design keeps case, top and sides cool. The unit is equipped with an auto cool down feature which allows the fan to cool the outer skin when the unit is turned off.
Steel construction with a stainless steel finish is used for durability. Includes a stainless steel slide out crumb tray for easy clean-up.
Available in 120V, 208V or 240V, 1-phase only. Total rated input is 1.6KW (120V), 1.1KW (208V), or 1.5KW (240V). A factory installed 6 foot (1.8m) cord is included.
When control is set to ON , quartz infrared elements will turn on to toast both sides of bread. Lightness and darkness of the product is achieved by adjusting conveyor belt speed. Standby positive allow for energy savings during non-peak periods.
Rotary 3-position dial selects ON/OFF/STANDBY positions. A conveyor speed dial controls the belt speed..
Angled loading rack. (Supplied with TC13D3)
Horizontal loading rack (optional)
Stainless steel tray (optional) fits models as an exit tray.
