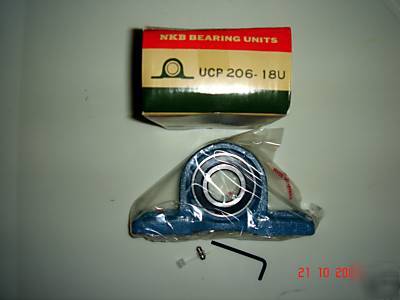

New nkb 1-1/8" pillow block bearing UCP206-18 ( )
High quality 1-1/8" pillow block bearing. The bearing has a wide inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
Bolt hole to bolt hole: 4.763 in. (121mm)
Overall length: 6.5 in. (165mm)
Shaft height: 1.689 in. (42.9mm)
Overall height: 3.228 in. (82mm)
The UCP206-18 1-1/8" pillow block bearing unit is equipped with two specially designed setscrews positioned in the inner ring of the ball bearing to lock onto the shaft. The pillow block set screws are placed at a 90-degree angle to optimize balance between holding power and inner ring distortion. The UCP206-18 1-1/8" pillow block bearings are relubricatable and offer a full-width inner ring for added stability.
The UCP206-18 pillow block bearing also features a positive-contact, three-piece, fiber-imbedded R-seal to protect against harmfull contaminants and retain lubricant. The setscrew locking mechanism on the pillow block bearing is easy to install and well suited for reversing applications and normal loads.
Applications for the UCP206-18 1-1/8" pillow block bearing include: Construction, Conveyors, Food and Beverage, Packaging and General Industrial Equipment.
