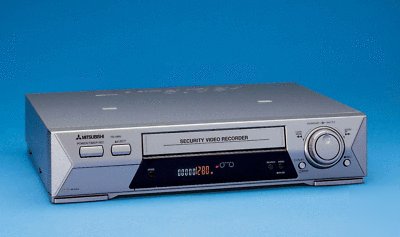

Mitsubishi hs-1280U vhs time lapse vcr
This sale is for a used HS-1280U sr 020017m Time-Lapse VCR combines functionality and reliability with an economical price to provide a cost effective recording solution for virtually any budget. This full featured VCR allows users to record in various time-lapse modes including 168 hour, 960 hour in a real-time 24hour mode. Additional features include: Front panel jog shuttle for ease of use, alarm and scheduled recording capabilities, triple density recording in time-lapse modes, audio recording capability, resolution: 240 lins (color)/330 lines (B/W)
Condition: used , This unit is in good condition it has a few scratches on the body, but that will not affecting the function of this unit.
Did this unit function? Yes, I turn the unit on only I do not has the camera to tested the record.
Did you test the unit? Yes, I did a power on test
Can you guarantee it will work? No, I do not guarantee any thing that I do not know the feature or when it will be dead.
Can I return it? no, Excepting if I made mistake on the listing, and you have to prove my listing was wrong.
What come with it? The unit only no thing els
Peace of mind at an affordable price is what the HS-1280U provides.
Included with the HS-1280U model is good picture quality, digital control of
the servo circuit for precise tape control, acrylic light guides that reduce
hardware components, and re-designed cassette guides for increased reliability.
Also standard is the jog/shuttle, for ease of use in programming, and
in playback, a selectable three language on screen menu, and a universal
Advanced functions also include timer recording, alarm recording, emergency
recording, series and repeat recording. Additional features such as
counter memory stop, skip and index search, special effects playback (one
field at a time), power loss recovery, tape use counter and auto head
cleaning make the HS-1280U an ideal choice for your recording needs at
Horizontal Resolution 240 lines in color & 330 lines in B/W
Signal Format CCIR standard 525 lines 60 fields/sec. NTSC (color/BW) auto select
Tape Format Standard 1/2" VHS (T120)
Video Recording 2 video helical heads for recording and standard playback,
Color Signal Low frequency conversion, sub-carrier phase shift recording
Video Input 1.0 Vp/p, 75 ohms unbalanced, BNC-F jack
Video Output 1.0 Vp/p, 75 ohms unbalanced, BNC-F jack
Signal to Noise Ratio Better than 42 db (6/8H mode)
Input 308 mV (rms), 50 K ohms, RCA plug
Output 388 mV (rms), 1 K ohms, RCA plug
Frequency Response 70 Hz to 4 KHz (6/8H mode)
Signal to Noise Ratio Better than 43 db (6/6H mode)
ALRM Input Screw terminal, input to start alarm recording
RST Input Screw terminal, input to end alarm recording and for adjusting
Record Input Screw terminal, input used for independent start/stop recording and
GND Screw terminal for chassis ground
Alarm Output Screw terminal, output to alarm device (siren, horn, other) while alarm
CLCK Output Screw terminal, output clock signal for camera switching
MODE Out Screw terminal, output signal indicates VCR s operations mode
CALL Out Screw terminal, output warning signal and also used in series
recording (alarm, other & malfunction)
Audio Tracks 1 track (audio in 6/8/L18/L24/L30/L40 modes)
Fast Forward/Rewind Time Approx. 160 sec. with T-160
Elapsed Use Time To 89,999 hours maximum
Timer Programs 8 position, daily start and stop times for one week
Alarm Recording Time Timed: 15/30/45 sec. 1/2/5/10 min.
Motors 3 motors - drum/capstan/loading
Heads-Audio/Control 1 stationary audio & control head
Head-Erase 1 full track erase head
Rating: SET/RST/REC Active when shorted to ground or L (0-+1.6 V), time to activate
0.1 sec. or more. *Inactive when open
Rating: ALARM/CALL/MODE Active L (0-.4 V) output max. drive current 50 mA (+5 V DC)/
10 mA (24 V DC). *Inactive open
Rating: CLK Recording A pulse of freq. div. ratio, selected by REAR TERMINAL menu
Power Source 100-230 VAC 50/60Hz
Power Consumption Approx. 18 watts
Power Cord 3 wire (3 prong for 120V/60Hz )
Operating Temperature 41 F - 104 F (5 C - 40 C)
Dimensions 16.7 x 3.7 x 12.3 in.
(W x H x D) (including jog dial) (425 x 95 x 313 mm)
specs taken from Mitsubishi website
