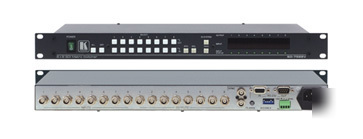

Kramer electronics sd-7588V 8X8 sdi matrix switch
Manufacturer: Kramer Electronics Model/Part #: SD-7588V
The SD-7588V is a high-performance matrix switcher for SDI (SMPTE 259M) video signals. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized SDI sources.
* Reclocking & Equalization - Automatic.
* Multi-Standard - 143Mbps (4fsc NTSC), 177Mbps (4fsc PAL, 70Mbps (4:2:2 component), 360Mbps (4:2:2 widescreen).
* Control - Front panel, RS-232 (K-Router Windows -based Kramer software is included) & RS-485.
* Resolution - 8 & 10-bits (automatic).
* Take Button - Executes multiple switches all at once.
* Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed when needed.
* ALL / OFF Controls - Sends one input to all outputs, can disconnect all outputs, or turn off individual outputs.
* IN SYSTEM Control - Allows for audio-follow-video when used with an SD-7588A in the same system.
* Vertical Interval Switching.
* Switching Synchronization - Synchronizes either to external reference or the incoming video.
* Worldwide Power Supply - 100-240V AC.
