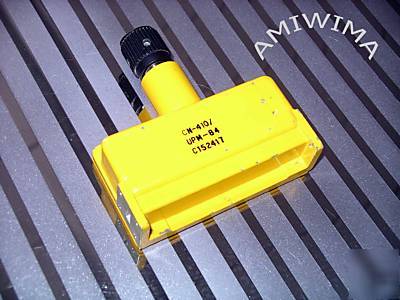

Variable attenuator waveguide wr-42 18 26.5GHZ k-band
You get one K-band variable waveguide attenuator with WR-42 flanges frequency range 18 to 26.5 GHz with a continuous attenuation from 0 - 20 dB min. Unit has some scratches as you can see in picture but the generell condition is ok.
Type MWA C152417 Waveguide hole I.D.=0.418" x 0.167". WR-42 flange. Bolt holes = 0.64" spacing. Body is 4" long. Military P/N: CN-410/UPM-84.
Size: 4.0 x 4.3 x 1.1 in or 10.0 x 11.0 x 2.8 cm
