> Vacuum table VTZ148RAL cnc engraving milling clamping

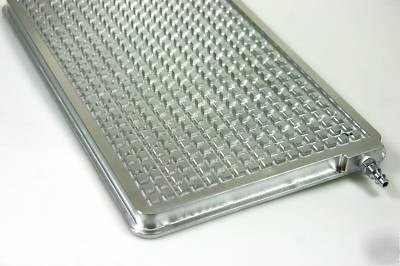

Vacuum table VTZ148RAL cnc engraving milling clamping
Vacuum table 148RAL CNC, Milling Engraving Machine
With the provided gasket material, create just about any vacuum area or shape within a 14"x8" Vacuum Area
Where it depends on hold strength, precision and stiffness.
Especially for secure clamping of small, thin, or rough surface parts like wood
This RAL Series type vacuum table is made of solid aluminum and straightened on both sides. These characteristics ensure both the maximum possible firmness and distortion-freeness when heated (not a bimetal effect).
This vacuum clamping technology guarantees a clamping force, which is around 4 - 5 times higher than using an ordinary vacuum cleaner or a side channel compressor. There is no need for a very powerful vacuum pump because the whole system is sealed up during the production process - even while countersinking your component!
Solid aluminum can be used in combination with coolant without almost any restrictions and therefore this vacuum table is practically indestructible.
By the use of a connecting adaptor with the ball valve, several of these vacuum tables can be driven by a single vacuum pump at the same time. This guarantees a high flexibility with repeat production.
You can for example, work with two vacuum tables: On the first table your product is being milled while on the other table you prepare the next item for the production process.
Using this process of a submerged single length foam rubber cord, the work piece is located directly on the aluminum surface of the vacuum table. This will achieved the maximum possible accuracy in the Z-axis direction.
Of course, we can offer a range of applications suitable for this type of table.
Furthermore, we produce various types of vacuum tables and sizes, vacuum pumps, electronic vacuum regulators, vacuum manifolds, liquid separators, and a whole lot of useful accessories.
* Overall dimension - Mounting Edge: 15.5 x 9.5 inch (393 x 241 mm)
* Vacuum Area: 14.0 x 8.0 inch (355 x 203 mm)
* Table top surface area: 15.0 x 9.0 inch (381 x 228 mm)
* Grid Squares: 0.25 x 0.25 inch (6.35 x 6.35 mm) with grooves to insert the supplied 1/4" sponge cord
* Ports: (1) Air type connection (You can replace it with a fitting of 1/4" - 18 NPT)
You get this table with; a warranty of one year from date of purchase. Except for mechanical damage due to faulty processing.
