Anritsu pcm channel analyzer MS371A1

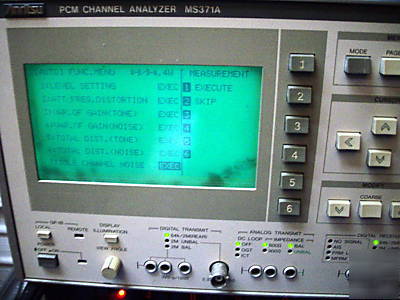

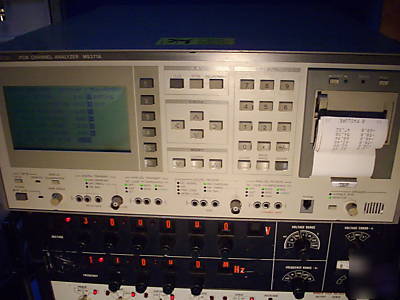

Anritsu PCM Channel analyzer MS371A1
* Automatic measurement of A-A, A-D, D-A and
* D-D (A: analog, D: digital)
Automatically measures most of the items in ITU-T Recommendations - G.712/713/714. The test sequence and parameters are stored internally, and new test sequences or parameters can be entered by the operator. Also, measurement can be done manually or via GPIB
* Frame alignment/alarm test
Frame alignment and alarm tests stipulated in ITU-T Rec. G.704/ O.162 can be performed
Error rate, error count, error second, and % error-free second can be measured by detecting the bit, frame, and code errors
Jitter modulation is available. Also jitter amplitude and jitter immunity can be measured
Manipulation/monitoring of the signalling bit and E&M signalling distortion can be measured
A GPIB controller function has been incorporated. One to thirty channels can be tested automatically and continuously through the channel selector
Results are printed out by the built-in printer. In automatic measurement, all results can be printed out or the printout can be limited to results failing the evaluation
Test results from channels 1 to 30 can be edited according to measuring item and printed out. A report, such as a test performance sheet, can be prepared immediately after the completion of measurements
