3" tos table-type horizontal boring mill #24614

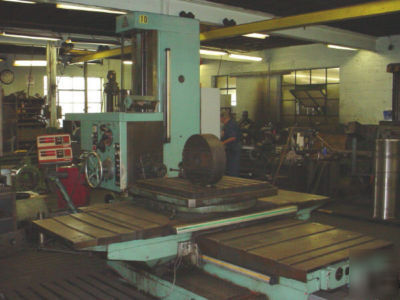

3" TOS TABLE-TYPE HORIZONTAL BORING MILL
New 1988, Serial No 06-04-1988, Model W75
36" x 36" Power Rotary Table (Built-In)
Spindle Diameter........................ 3"
Spindle Taper........................... #40
Spindle Travel (W-Axis)................. 24"
Table Cross Travel (X-Axis)............. 49.25"
Spindle-Head Vertical Travel (Y-Axis)... 35.46"
Saddle In/Out Travel (Z-Axis)........... 50"
Table Dimensions (Overall) W x L........ 36" x 36"
Spindle Speeds, Range................... 2 to 1800 RPM
Spindle Motor, Horsepower............... 14 HP
Dimensions.............................. 14'6"L x 8'9"W
Height.................................. 9'6"
Weight Approximately.................... 24,500 LBS.
PRICE: F.O.B. PHILADELPHIA WAREHOUSE... $39,500.00
