3 axis dro axis linear scale kits mill seig X3


BRAND NEW 3 axis DRO + 3 AXIS LINEAR GLASS SCALE Kit
Specially Designed for the Sieg Super X3 Milling Machine.

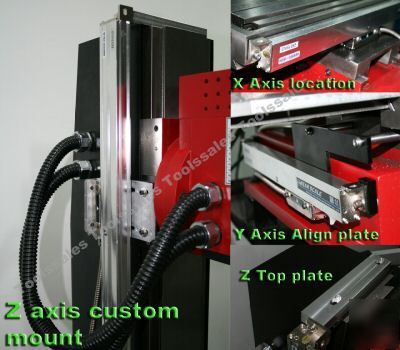

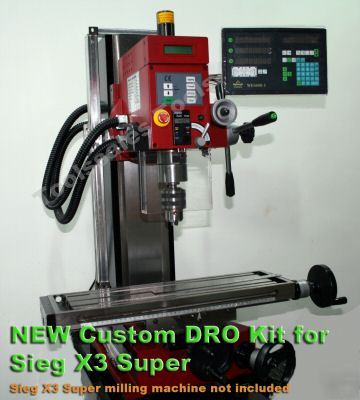

Please refer to the pictures of our in house Super X3 Mill to see the professional quality of our installed kits (we also stock this unit in 220V)
This Kit is designed specifically for the Super X3, which allows not only an easy installation, but also the proper alignment of the scales, which is important for the longevity of the scales.
1 x Model 6800 Extended feature 3 Axis Digital Read Out Unit
1 x WTB5-600mm, 1 x WTA-350mm, 1 x WTA-250mm
3 x screw pack and spacer for DRO.
1 x English Manual - Setup & Operation
1 x Clear Plastic Dust Cover for DRO
3 x Glass Scale Protective Cover
1 x Swing Mounting Arm for DRO
The basic linear scales include hardware to install on most other Milling machines, But this kit is CUSTOM DESIGNED for the Seig Super X3. It includes the following parts in the package:
1 x Z Axis Top Mounting block (Machined Aluminum parts w/ anodized black finish)
1 x Z Axis Mill head adapter plate (Machined Aluminum parts w/ anodized black finish)
1 x Z Axis Custom L bracket (cast Aluminum)
1 x Y Axis Extension Plate (Machined Aluminum parts w/ anodized black finish)
2 x Y Axis extension shaft (Steel)
2 x Y Axis angle alignment block (Machined Aluminum parts w/ anodized black finish)
Without the above additional parts, installation will be a difficult task.
This Kit comes with the complete hardware listed above that makes installation a snap.
Complete picture installation instructions for the Super X3 guarantee that your installation will only require a few easy steps to complete. The only modifications required on the machine are to drill and tap 11 holes (4 holes on the X axis, 4 on the Y axis, 1 on the Z axis, and 2 for the DRO mount). The rest involves just attaching screws and adjusting the custom alignment mounting plates to align the scales.
Dual System switchable, Imperial (inch) or Metric (mm)
Absolute/Incremental/SDM coordination system
1000 work piece zero position memory
Drilling hole in a oblique line
9 Tool compensation on arc cut
Linear error compensation function
High Resolution : 1um (0.001mm) 0.00004 inch
Cable length: Stainless steel tubing for ~ 3 Meter (about 9 feet)
Diaphragm Membrane touch keys (Water/Coolant/Dust Proof)
3x 8-Segment Green LED Display Windows
Input Voltage: AC 85V ~ 250 V, 50 Hz ~ 60 Hz world voltage
Input signal frequency: >100KHz.
For other lathes or mill machines, we also offer the following sizes of Linear scales, with either 0.001mm or 0.005mm resolution. Please email us for a quote.
Metric: 120, 170, 220, 270, 320, 370, 420, 470, 520, 620, 750, 820, 920mm.
Inches: 4.7, 6.7, 8.7, 10.6, 12.6, 14.6, 16.5, 18.5, 20.5, 24.5, 29.5, 32.3, 36.2 inches.
All purchases are final. We will replace defective products only.
Return package must be in the original packaging. Everything must be in new condition. Missing parts, hardware, documentation, or anything included in the original package will not qualify for any refund.
Defective items can be exchanged within 7 days of receipt.
Replacements and refunds will not be processed until the return item is received.
