> 1 x ic chip, led driver, power supply transformer, 1A
1 x ic chip, led driver, power supply transformer, 1A

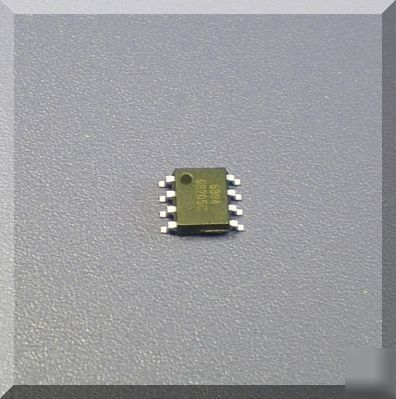

The PT4107 is a PWM high-efficiency LED driver control IC. It allows efficient operation of High Brightness (HB) LEDs from voltage sources ranging from 18VDC up to 450VDC. The PT4107 controls an external MOSFET at fixed switching frequency up to 300kHZ. The frequency can be programmed using a signal resistor. The LED string is driven at constant light output and enhanced reliability. The output current can be programmed between a few milliamps and up to more than 1A.
The output current on an LED string can be programmed to any value between zero and its maximum value by applying an external control voltage at the linear dimming control input of the PT4107. Moreover, PT4107 provides a low-frequency PWM dimming input that can accept an external control signal with duty ratio of 0-100% and a frequency of up to a few kilohertz.
Wide input range from 18V to 450V
Suitable for constant-current LED driver
Applications from a few mA to more than 1A Output
LED string from one to hundreds of diodes
PWM Low-Frequency Dimming via Enable pin
Frequency jittering for better EMI performance
Programmable Over temp Protection (OTP)
DC/DC or AC/DC LED Driver applications
General purpose constant current source
Signage and Decorative LED lighting
DOWNLOAD DATESHEET DOWNLOAD APPLICATION NOTES
