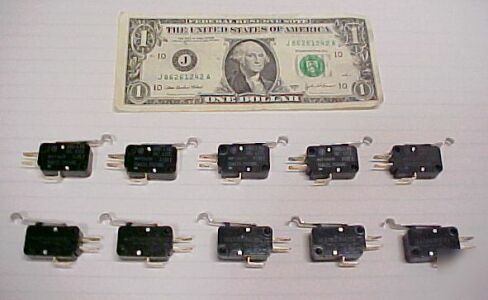

Lot 10 panasonic 15A lever micro switches microswitches
This item was acquired at a surplus sale recently, and they were brand new in the original factory boxes. We repackaged them in 4mil Ziploc bags for resale. The terminals show some minor tarnish because they are made of silver alloy, and that's just what silver does.
The silver alloy contacts are rated at a hefty 15 amps, with an electrical life of 100,000 cycles at full load, so these are not your run-of-the-mill imported junk. Very nice switches for many applications, and made by a respected manufacturer.
These have three connector terminals - C, NC, and NO, which allows them to be wired for either Normally Closed or Normally Open operation. First, connect your incoming (hot) wire to the angled "C" terminal on the side of the switch. If the outgoing (load) wire is connected to the "NC" terminal, electricity flows through the switch continuously until the lever is pushed (push lever to turn OFF). If the outgoing (load) wire is connected to the "NO" terminal, electricity flows only while the lever is pushed (push lever to turn ON). For added "excitement" in your life, simply neglect to turn off the electricity at the fuse box before making your connections.
The Panasonic part number (AH715479) breaks down as follows:
AH7: Switch Series - Versatile High Performance Miniature Switches
1: Contact Arrangement - Bottom COM Terminal SPDT
5: Terminals - .187 Quick-Connect / Solder Terminal
4: Actuator - Simulated Roller Lever
7: Operating Force - 2.35n (max.)
9: Agency Standard - UL/CSA 6 10/3 Rated
Overall length, including lever & terminals: 1.920"
Overall width, including lever & terminal: 1.270"
Lever length (past switch body): .438"
Mounting holes: .125" (1/8" or M3) spaced .975" OC (on centers)
Terminal protrusion past end of switch body: .385"
Terminal protrusion past side of switch body (com. terminal): .385"
- Extra long-life spring mechanism
- More than 10(7) mechanical operations, 10(5) electrical
- High contact rating of 15 Amps with an operating force of only 200 g
- Amusement and communication equipment
Stational contact: AgZnO alloy
Contact rating (resistive load): 15A 125V/250V AC, 0.6A 125V DC
Mechanical (at O.T. rated): Min. 10/7 (at 60 cpm)
Electrical (at O.T. min.): Min. 10/5 (at rated load, 20 cpm)
Insulation resistance: Min. 100M (at 500V DC)
Between terminals: 1,000V AC for 1min.
Between terminals and other exposed metal parts 1,500V AC for 1min.
Between terminals and ground 1,500V AC for 1min.
Contact resistance (Initial): Max. 50m (by voltage drop at 1A 6 to 8V DC)
Vibration resistance (by pin plunger types): 10 to 55 Hz at amplitude of 0.75mm (Contact opening: max. 1msec.)
Shock resistance (by pin plunger types): Min. 98m/s2 196m/s2 294m/s2
Allowable operating speed: 0.1 to 1,000mm/sec.
Max. operating cycle rate: 600/min.
Ambient temperature: -25C to +120C (No freezing below 0C)
Simulated roller lever (Fifth digit of part number = 7)
(23 to 28) lots: Five pounds
