Simpson strong tie IXP37600 conical anchor 3/8"X6"(20)

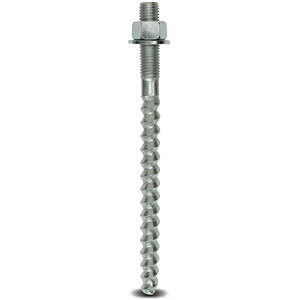

Simpson Strong Tie IXP37600 Conical shaped adhesive anchor 3/8" X 6"(20/box)
The Simpson Strong-Tie IXP anchor is a torque-controlled adhesive anchor that, when used with Simpson Strong-Tie SET-XP epoxy, provides optimum performance in both cracked and un-cracked concrete under a variety of adverse service conditions. The IXP anchor was rigorously tested according to ICC-ES AC308 and 2006 IBC requirements. The unique conical shape of the helix configuration enables the IXP anchor to mimic the follow-up expansion behavior of a torque-controlled expansion anchor when tension-zone cracks in the base material intersect the anchor location. In addition, the tri-lobular shape of the helix configuration functions as an anti-rotation feature that prevents the anchor from unscrewing during torque, vibratory and seismic loading, and the normal open and closed cycling of tension zone cracks over the service life of the anchor. FEATURES
* Conical helix configuration provides follow-up expansion forces when cracks intersect the anchor
* Tri-lobular configuration prevents the anchor from unscrewing during torquing, vibratory and seismic loading, and open and closed cycling of cracks
* Installs like threaded rod: no special drill bits required
* Head stamped with sign for easy identification after installation
