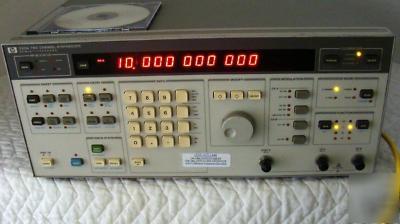

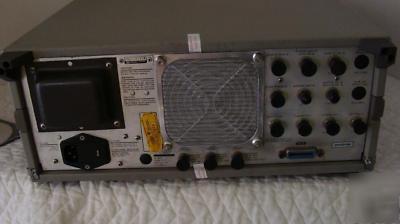

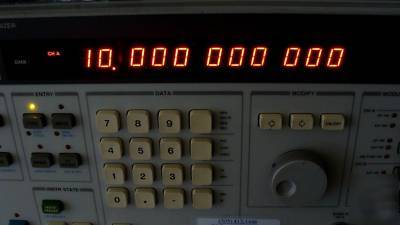

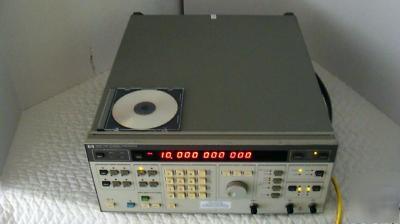

Hp - agilent 3326A two channel synthesizer w/opt 002
The HP 3326A is a Two-Channel Synthesizer that combines two independent synthesizers, flexible modulation and control circuitry into one single powerful package. This single instrument provides precise phase offset, two-tone sweep, fast frequency swithing, internal modulation, and pulse singnals for bench or system use. Functions: sine, triangle, square, negative & positive ramps.
SPECS: *Frequency range: dc to 13 MHz *Resolution: 1 Hz <100 kHz, 1 mHz >100 kHz *Frequency stability: 5x10-6/yr *Phase offset - phase lock modes: resolution: 0.01 , range: 720 *Output amplitude: 1 mVpp to 10 Vpp into 50 ohms *DC Offset: 0 - 5.0 V *AM, phase modulation *Nine store/recall registers *HP-IB interface *Output connectors: BNC(f).
