model G695B - right angle cherrylock® riveter

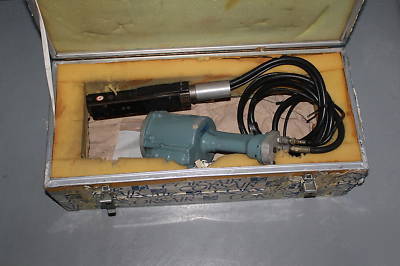

This unit is used but has seen very little use. This sells for over $5000.00 new but you can get it now for $2995.00

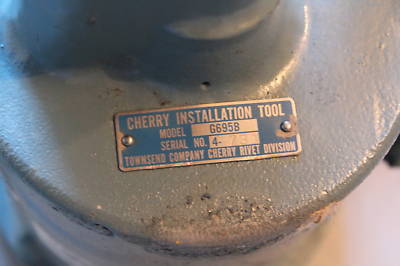

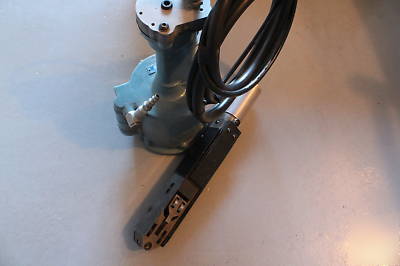

G695B RIGHT ANGLE POWER RIVETER

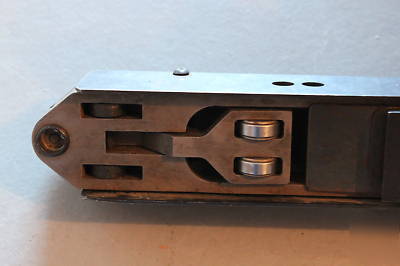

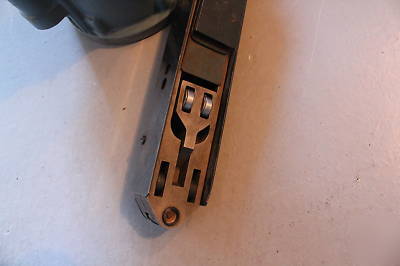

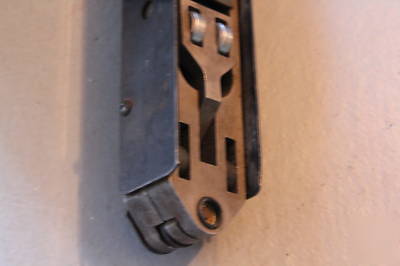

The G695B right angle riveter is designed specifically
for installing CherryLOCK rivets in limited access areas.
The G695B riveter develops a minimum of 2000 lbs. of
pulling power on 90 to 110 psi of air pressure at the tool,

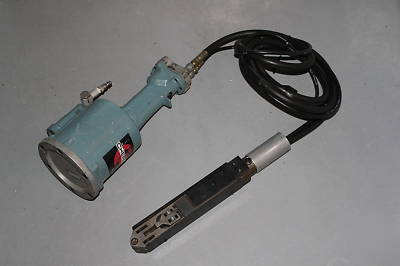

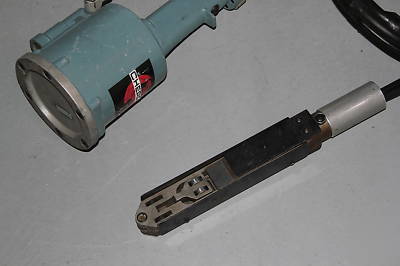

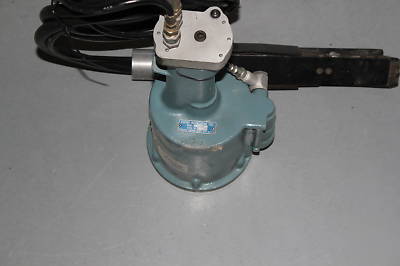

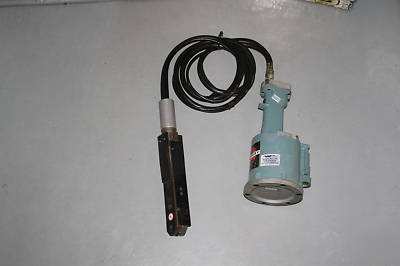

and has a 5/8" stroke. The power unit rests on the floor
and is connected to the right angle unit with 8 feet of
hose which further increases the flexibility of this tool.
Pulling heads are not furnished with this tool.
H690 Series pulling heads fit directly on this tool to
install both bulbed and standard CherryLOCK Rivets.
Air Consumption .50 SCF/cycle (14.2 l/cycle)
NOTE: Maximum grip length capacity when using wiredraw fastener is
.250". No limitation for grip length when using CherryLock Bulb rivets.
There is a separate pulling head required for each
head style (universal or countersunk) and each
shank diameter of CherryLOCK rivets. These heads
fit directly on G695B right angle riveters.
Rivet Diameter Pulling Head Number Rivet Head
