Sumitomo type-66 ribbon kit fusion splicer **usa model
voiding the Sumitomo warranty and right of repair. It does impacts the specifications/ performance ,
The Type-66 TuffCat mass fusion splicer features the industry s first Dual-Automatic- Splice Protection Sleeve Heater System Sumitomo s exclusive patent-pending innovation. The dual heater system s simultaneous operation helps to eliminate squandered time waiting for a single heater system to complete its cycle. Instead, the streamlined splicing process reduces the bottle neck of "heater wait time" by 88%, improving mass splicing efficiency and productivity in the field by 70%.

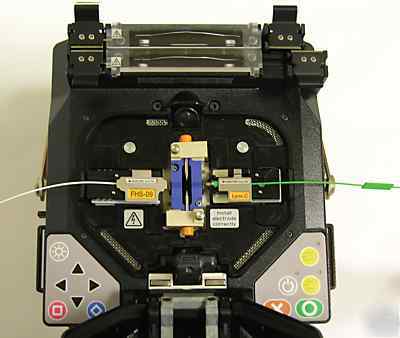

The TuffCat features an effortless fiber holder system to increase splice repeatability while making the unit easy to use regardless of the operator s experience level. Utilizing precision v-groove alignment, the TuffCat can be used for all types of ribbon and single splicing with an optimum arrangement for ease of use in trunk, aerial, or taut-sheath applications.
Splicer Cleaver Heated Jacket Remover Power Cord V-Groove Brush Spare Electrodes Manual 250 m Holders, 12 Count Ribbon Holders Hard Case + Battery and Charging Cable
Type 66-KIT-2 Components: Includes all items from Type-66-Kit-1 plus; Ribbonizing Tool (FTA-2) Consumable Kit (FAC-24)
Dual Independent Splice Protection Heaters

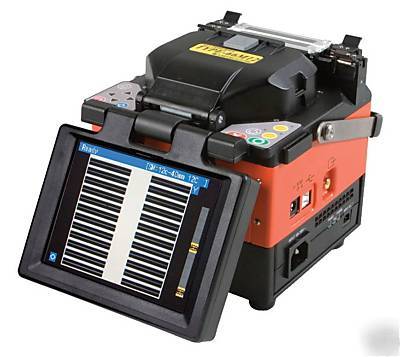

5.6" Switchable Color Monitor for Front to Back or Back to Front Operation
Automatic Splice and Heater Start
Fiber Alignment Vibration Clamps
Extended Life Battery: 140 SPlices & Heater Cycles per Charge
User-Friendly Menu Slection System with On-Screen Assistance
Spanish Language Option Standard
This unit is size, in inches, is 5.9W x 5.9D x 5.9H, with a weight of only 5.9 pounds, the standard battery is enough for 70 splices & heater cycles
Alignment Method - Fixed V-groove
Fiber Placement - Fiber Holder System (Unified Holders for Type-25e/Type-66/Type-65)
Coating Diameter Ribbon - 250 m Single: 250 and 900 m
Typical Splice Time - 20 seconds
Typical Splice Loss, Identical Fibers - SMF: 0.04dB, MMF:0.03dB, NZ-DSF: 0.07
Built-In Dual Splice Protection Dual Independent Splice Protection Sleeve Heater Sleeve Heaters
Heater Cycle Time Heater - 1 40 seconds Heater 2 40 seconds
Arc Test Compensation - Automatic
DC (Battery Operation) - Standard: 70 Splices & Heater Cycles Extended Life: 140 Splices & Heater Cycles
Interface - USB for PC Interface RCA Jack for External Monitor 12 Volt DC Output for Accessories
Display Type - 5.6 Inch Color TFT Low Glare High Resolution Color Monitor
Display Positions - Multiple Positional for Front to Back/ Back to Front Work Flow
Selectable Language Options - 18 Language Options including Spanish
Lynx CustomFit Splice-On Connector - Compatible
Splice Data Storage - 2000 Splice Points
