> Microchip pic 16F876A i/sp enhanced flash 28 pin qty 2

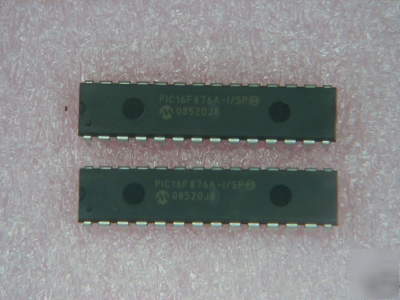

Microchip pic 16F876A i/sp enhanced flash 28 pin qty 2
Only 35 single-word instructions to learn
All single-cycle instructions except for programbranches, which are two-cycle
Operating speed: DC 20 MHz clock input DC 200 ns instruction cycle
Up to 8K x 14 words of Flash Program Memory, Up to 368 x 8 bytes of Data Memory (RAM), Up to 256 x 8 bytes of EEPROM Data Memory
Pinout compatible to other 28-pin or 40/44-pin PIC16CXXX and PIC16FXXX microcontrollers
Timer0: 8-bit timer/counter with 8-bit prescaler
Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
Two Capture, Compare, PWM modules
- Capture is 16-bit, max. resolution is 12.5 ns
- Compare is 16-bit, max. resolution is 200 ns
- PWM max. resolution is 10-bit
Synchronous Serial Port (SSP) with SPI (Master mode) and I2C (Master/Slave)
Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI) with 9-bit address detection
Parallel Slave Port (PSP) 8 bits wide with external RD, WR and CS controls (40/44-pin only)
Brown-out detection circuitry for Brown-out Reset (BOR)
10-bit, up to 8-channel Analog-to-Digital Converter (A/D)
Analog Comparator module with:
- Programmable on-chip voltage reference (VREF) module
- Programmable input multiplexing from device inputs and internal voltage reference
- Comparator outputs are externally accessible
Special Microcontroller Features:
100,000 erase/write cycle Enhanced Flash program memory typical
1,000,000 erase/write cycle Data EEPROM memory typical
Data EEPROM Retention > 40 years
Self-reprogrammable under software control
In-Circuit Serial Programming (ICSP ) via two pins
Single-supply 5V In-Circuit Serial Programming
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
Selectable oscillator options
In-Circuit Debug (ICD) via two pins
Low-power, high-speed Flash/EEPROM technology
Wide operating voltage range (2.0V to 5.5V)
Commercial and Industrial temperature ranges
The device is a 28-pin Dual-In-Line package.
This device is CMOS, therefore it is static sensitive.
