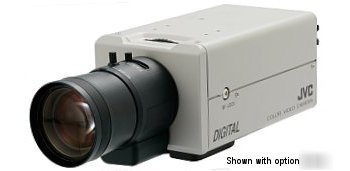

Jvc tk-C1530U TKC1530U color camera body low lux light
Manufacturer: JVC Model/Part Number: TK-C1530U
Targeting the video surveillance and security market, the TK-C1530U has 540 TV lines of resolution and perfect color reproduction under adverse lighting conditions (ex. High Pressure Sodium Light). For very low light conditions a removable IR filter is built in, making it a true Day/Night camera. The TK-C1530U features enhanced functionality such as a serial communication interface, back light compensation and private masking.
* 1/3-in IT CCD with 380,000 effective pixels
* 540TV lines of horizontal resolution
* Super LoLux sensitivity 0.05 lx (F1.2,AGC ON,25 IRE, B&W mode)
* 50 dB(AGC OFF) Signal ? to ? Noise Ratio
* New revolutionary 10-bit Digital Signal Processor
* Support DC / Video iris for C or CS mount lens
* Selectable display mode CRT or LCD for perfect color rendition.
* Various white balance modes (2 ATW/AWC/Manual).
* Sync systems: INT/Line lock
* RS-422A/RS-485 interface
* Back light compensation (BLC) off / on (4 patterns)
* Smart Edge Control mode (S.E.C.)
JVC is one of the most visible CCTV and consumer electronics names in the business. Their products are rock solid and compete feature to feature with the other major players like Panasonic, Pelco and Sony. The line of fixed cameras are some of the most reliable on the market today .
