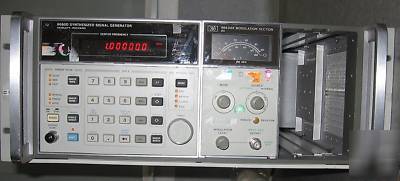

Hp agilent 8660D synthesized signal generator & 86634A
The 8660D Synthesized Signal Generator is a modular, solid-state, plug-in system with 86634A Phase Modulation plug-in
* Option 003 = Operation from 48 to 440Hz Line
* Option 005 = Factory Configured for HP-IB Programming Option
* Option 100 = 11661B Factory Installed Inside Mainframe
With The 86634A Phase Modulation Section Plug-In is designed for use with 8660-series mainframes. Meter indicates peak phase modulation from 0 to 100 and CF >/=1300MHz from 0 to 200 . 50-ohms input impedance.
