Fisher FB1000 3000V electrophoresis power supply

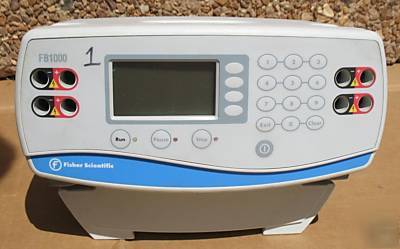

Fisher FB1000 Electrophoesis Power Supply
If you want to read the manual, email me your address and I'll send the PDF file.
The FB1000 power supply is designed to provide constant voltage, current, or power in both Manual and Programmed modes of operation commonly used in electrophoresis applications. One to four sets of electrophoresis cells can be connected in parallel and run simultaneously. The FB1000 can deliver up to 250W of total output power. When operating in any constant mode, the power supply automatically limits the other parameters to either the power supply maximum, or a lower limit if set by the user. If any non-constant limit is reached, the power supply will automatically switch control modes, controlling the limit parameter. In this way, the FB1000 protects your electrophoresis cells from damaging over power conditions. The FB1000 power supply also provides for timed and volt-hour operation in all control modes, and allows an automatic completion in the event of a power loss if enabled.
5-1000V, adjustable in 1 volt steps
1-500mA, adjustable in 1mA steps
1-250W, adjustable in 1W steps
0-90C, adjustable in 1degree C steps
Automatic control mode crossover
0-99 hour 59 minute timed run
Automatic restart if loss of AC power (if enabled)
This is a USED unit in good cosmetic condition and tested to power up and display menues as shown.
