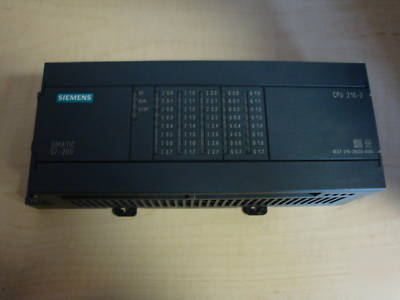

Cpu 216 ac power supply-dc inputs, relay outputs
The S7-200 Micro PLC from Siemens can be used as either a stand-alone Micro PLC solution or in conjunction with other controllers
Physical Size (L x W x D) 217.3 x 80 x 62 mm
User Program Size/Storage 4K Words/EEPROM
User Data Size/Storage 2.5K Words/RAM
Local I/O 24 Inputs/16 Outputs
ON State Range 15 to 30 VDC, 4 mA minimum
I0.0 to I1.5 0.2 ms to 8.7 ms selectable
I0.6 to I1.5 as used by HSC1 and HSC2 6 us ON, 30 us OFF
Optical Isolation 500 VAC, 1 min
Maximum Load Current 2 A/point, 10 A/common
Contact to Contact (b/t open contacts) 750 VAC, 1 minute
Input Current 6 VA typical, CPU only
5 VDC Current 1000 mA for expansion I/O
Voltage Range 19.2 to 28.8 VDC
24 VDC Available Current 400 mA
