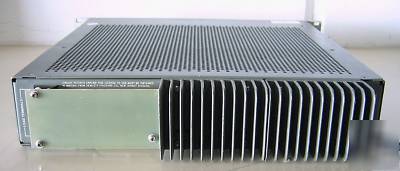

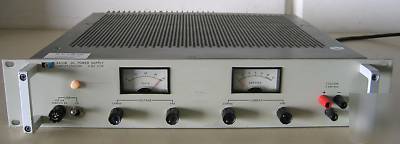

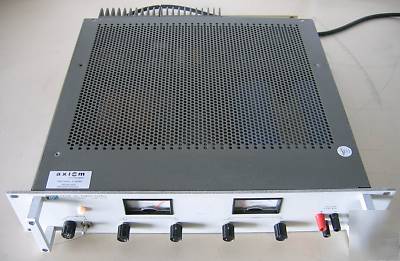

Agilent / hp 6433B dc power supply 36V 10A
AGILENT / HP 6433B DC POWER SUPPLY 36V 10A
Description: The 6433B Power Supply is a SCR-regulated supply designed for applications requiring a fixed or variable DC source with moderate regulation and ripple. Constant-Voltage/Constant-Current type and provides a DC output from 0 to 36 V @ 0 to 10 A. Large easy-to-read meters continuously monitor output voltage and current. Input and output power, remote sensing, remote programming, and auto-series, -parallel, and -tracking connections are made to bus bars and terminal blocks on the rear panel. Also incorporates reverse voltage protection and a fused AC input. Operates from 115 VAC 10%, single phase, 57-63 Hz.
