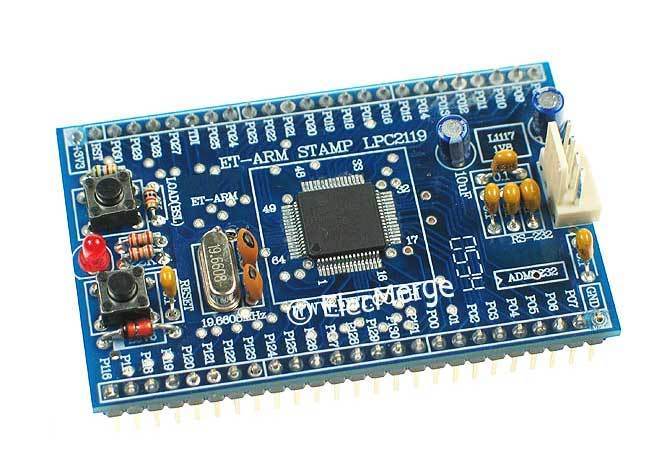

ARM7 LPC2119 nxp philips basic stamp module arm board
ARM7 LPC2119 BASIC STAMP MODULE
ARM LPC2119 NXP BASIC STAMP Module
The LPC2119 NXP based on the high-performance 16/32 bit ARM7TDMI-S CPU Core. This microcontroller includes real-time emulation and embedded trace support, together with a whopping 128k of high access speed Flash Memory. This module really delivers with high 32-bit speed combined with a large memory area, together with a host of peripherals to support the most demanding applications, all at a very competitive price.
Programs can be downloaded directly to the module via a simple RS-232 Connection on the module, with easy-to use download software combined with the boot-loader already installed on the chip. Updates and program modifications can be completed simply without the need to remove or place the module in a programmer.
The LPC2119 Stamp Module combines a high performance microcontroller, together with standard interchangeability and rapid program modification via the direct RS-232 interface.
* Includes Philips LPC2119 Microcontroller with 128 KBytes Internal Flash Program Memory
* 16/32 Bit Operation with a speed of up to 58.9824MHz
* Direct In-Circuit Program Download with RS-232 Connection
* 4 Channel 10-Bit A/D Converters
* 2 CAN Interfaces with Acceptance Filters
* 2 UARTS and Fast I2C, together with SPI
* Two 32-Bit Timers with Four Capture and Compare Channels
* Power LED with Load and Reset Button
1 x ARM7 LPC2119 Basic Stamp Module (include RS-232 Serial Cable & CD Document)
* ARM7 LPC2119 BASIC STAMP Board.
