Portable jib crane hoist regent jack cobra 1500 lbs
This is for used Cobra Crane made by Regent Jack.
Works from three separate power supplies:
(2) 12 Volt batteries on board power
Will operate from either of these powers.
The on board power of (2) 12 V batteries also has a 120 VAC battery charger built in.
Unit is completely portable and can be towed to locations.

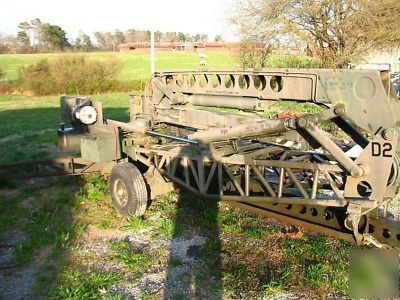

The wheels fold up hydraulically to lower unit to the ground.
2 of the three stabilizers swing around and slide up inside the unit for towing.

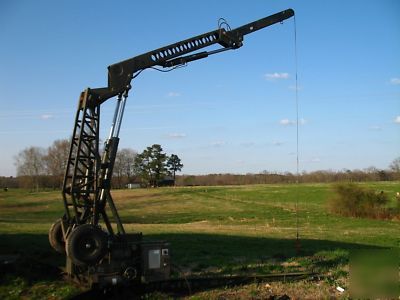

Hoist is hydraulically powered and extends about 16 feet.
Boom extension from turntable center is about 15 feet.

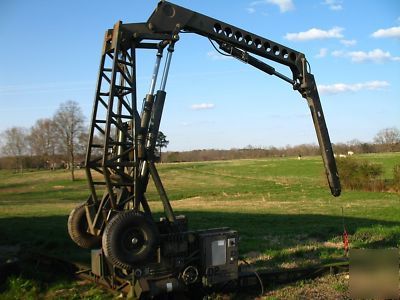

Boom height as shown in the first picture is about 16 feet. Will go a lot higher but the distance to the turn table decreases with more height.

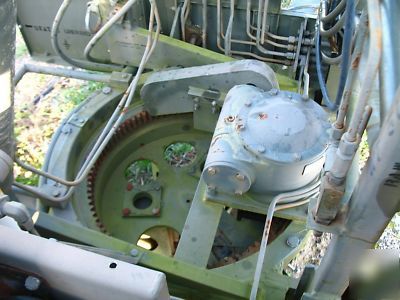

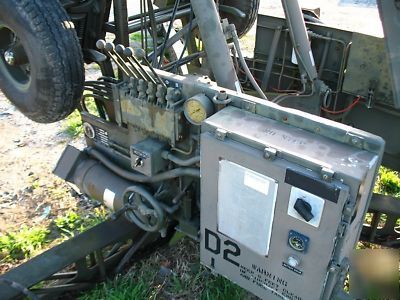

Everything is hydraulically powered. The entire unit will rotate 360 degrees using a hand wheel. The hand wheel is hydraulically assisted and turns very very easily. All the other hydraulics are joystick operated.

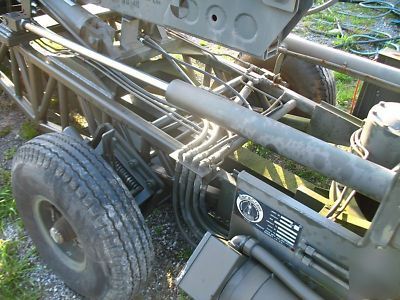

You might notice hydraulic fuild on the unit in some pictures, we had to replace the seals on two cylinder. There are no leaks at all since repair.

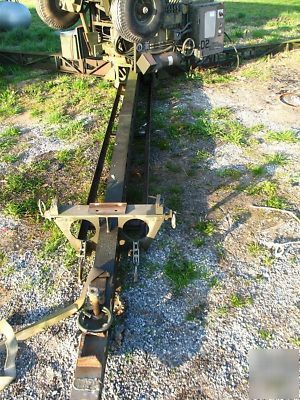

We did break one of the stabilizer hand wheels near the pintel hitch while unloading the unit. We will repair this prior to delivery or pickup.
Unit is military surplus and cost $87,700.00
I don't believe the unit was ever used.
