Duff norton M9804 19 ball screw actuator,

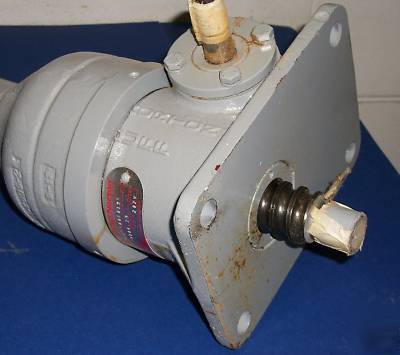

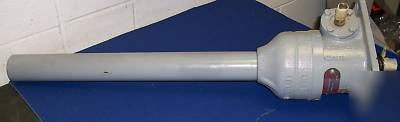

DUFF NORTON M9804 19 BALL SCREW ACTUATOR, NIB
DIAMETER OF LIFTING SCREW 1-1/2" .474 LEAD
WORM GEAR RATIO : STD 6:1 OPTIONAL 24:1
TURNS OF WORM FOR 1" RAISE: STD RATIO 12.667 OPTIONAL 50.667
MAX HP PER ACTUATOR: STD RATIO 4 OPTIONAL 6/4
STARTING TORQUE AT FULL LOAD: STD RATIO 220 LBS/IN OPTIONAL 90 LBS/IN
RUNNING TORQUE AT FUL LOAD: STD RATIO 180 LB/IN OPTIONAL 80 LB /IN
ACTUATOR EFFICIENCY RATIO (%) STD RATIO 70 OPTIONAL 39
WEIGHT WITHBASE RAISE OF 6" (LBS) 40
WEIGHT FOR EACH ADDITIONAL 1" OF RAIS (LBS) .9
HOLD-BACK TORQUE AT RATED LOAD (LB-FT): STD RATIO 8 OPTIONAL .4
