Agilent E1428A 1 gsa/s vxi oscilloscope
Agilent E1426A VXI 500MHz Digitizing Oscilloscope 4 Channels

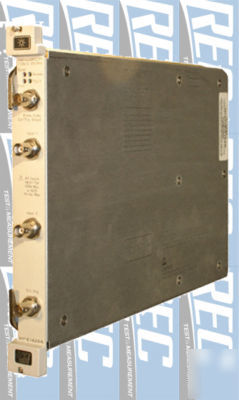

The Hewlett Packard / Agilent E1428A is a 1 GSa/s VXI Oscilloscope. The E1428A has 2 Channels, 250MHz a channel and is 1GSa/S. The Agilent E1428A is a C-size, 1-slot, message-based VXI module. The E1428A contains an 8-bit A/D and 8,000 point memory to simultaneously capture at up to 1GSa/s. This preserves the timing correlation of both channels without a reduction in sample rate. For fast capture of many waveforms, the E1428A offers sequential single-shot mode which internally stores successive waveforms rapidly. The memory can be optimized for acquisition speed or capacity. There are 100 K-words of internal RAM or 500 K-words of shared RAM for segment storage. Some of the features of the Agilent E1428A are:
* 1-slot, C-size, message based
* 250MHz bandwidth, 2 channels
* 1 GSa/s maximum sample rate
* Fast throughput with 1MB shared RAM
* Recommended for transient signals
Data Sheet: Agilent E1428A Data Sheet
