Solberg compact intake air filter compressor vacuum

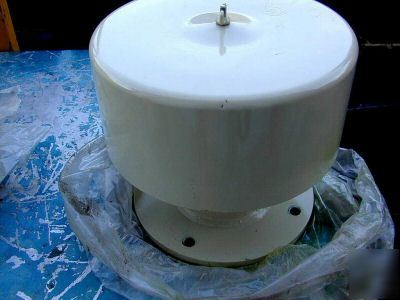

Solberg Compact Intake Air Filter
Solberg Manufacturing filters are often found on the best air and vacuum compressors. The F-Series Filter factory datasheet shows it to be used in many wide and varied applications. Solberg Manufacturing SMI specifies this filter for use in: Blowers-Side Channel, Compressor - Piston, Compressor - Screw, Compressors-Factory Air, Construction\Contractor & Concrete Industry, Engines, Fans, Hydraulic Breathers - fine filtration, Industrial & Severe Duty, Medical, Pneumatic Conveying Systems, Power Plants and Sparging - Waste Water Aeration. The following measured dimensions are:
Overall Height = 9.25", Overall Diameter = 10.25", Flange to Filter Bottom = 4.25", Flange OD= 9.0", Flange Bolt Circle = 6.5", Inlet Tube ID = 4.0"
The filter element is a special order wire mesh continuously reusable. Simply wash and soak with oil before reusing. Element dimensions: 7 3/4" OD x 5" H x 1.5" thick.
We see them most often in Piston and Screw Air Compressor Intake applications. It is a large flange type with full weather covering. Base gasket included. Minor inventory shelf wear of paint chips or scratches exists.
This item can be removed from the store at any time. It is available locally and through other vendors.
