Dwyer magnehelic 2000-50MM diff press gage 50MM water

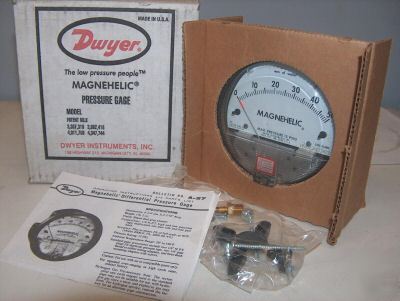

DWYER MAGNEHELIC 2000-50mm DIFFERENTIAL PRESSURE GAGE 50mm WATER
MANUFACTURER: DWYER INSTRUMENTS, INC.
DESCRIPTION: DIFFERENTIAL PRESSURE GAGE MAGNEHELIC 2000-50mm
Service: Air and non-combustible, compatible gases. (Natural Gas option available.)
Die cast aluminum case and bezel, with acrylic cover. (MP model has polycarbonate cover).
Pressure Limits: -20 Hg to 15 psig. (-0.677 bar to 1.034 bar)
Relief plug opens at approximately 25 psig (1.72 bar), standard gages only. The blowout plug is not used on models above 180 inches of water pressure, medium or high pressure models, or on gages which require an elastomer other than silicone for the diaphragm.
4 (101.6 mm) diameter dial face.
Diaphragm in vertical position. Consult factory for other position orientations.
1/8 female NPT duplicate high and low pressure taps - one pair side and one pair back.
1 lb 2 oz (510 g), MP & HP 2 lb 2 oz (963 g).
