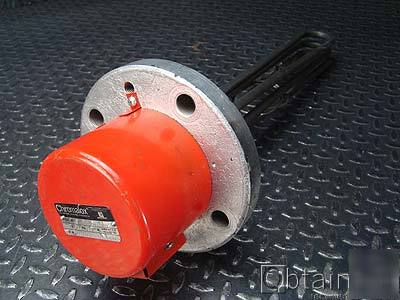

Chromalox flanged immersion heater 6KW 6" flange unused
Chromalox Flanged Immersion Heater 6KW 6" Flange Unused
This item is unused, with only a few minor scratches from storage.
Chromalox Model - TMI-3065HVXX, P/N 155-500702-538, 208V, 6KW, 3 phase.
Approximate length of the heat elements are 18 inches. Approximate overall length of the entire unit is 23 inches.
Flange is 1" thick, has 4 hole which are 6" across and 4 1/4" between holes.
Includes Installation and operating instructions.
