13.5" Width 9" Height Kalamazoo H9AW HORIZONTAL BAND SAW, MADE IN USA,Vari-Speed,Swivel Vise, 2 HP,

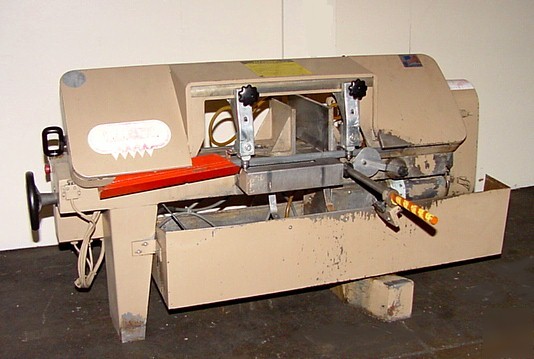

9" X 13" KALAMAZOO HORIZONTAL BAND SAW
MODEL H9AW-V, S/N: K-21351, NEW: 1999
CUTTING CAPACITY @ 90 DEGREES:
ROUND ...................... 9"
RECTANGULAR ................ 9" X 13-1/2"
CUTTING CAPACITY @ 45 DEGREES:
ROUND ...................... 8"
RECTANGULAR ................ 8" X 8"
BLADE SIZE ...................... 130-1/2" X 1" X .035"
INFINITELY VARIABLE BLADE SPEEDS. 62 -390 F.P.M.
BED HEIGHT ...................... 25-1/4"
BANDWHEEL DIAMETER .............. 14"
VISE OPENING .................... 16"
APPROX WEIGHT ................... 900 LBS.
APPROX DIMENSIONS ............... 6'X 3'X 3'6"
- ADJUSTABLE STOCK STOP DEVICE WHICH MAY BE EASILY SWUNG OUT OF THE WAY WHEN NOT NEEDED
- SWIVEL VISE TO 45 DEGREES FOR MITER CUTTING
- SELF-CONTAINED COOLANT SYSTEM WITH REMOVABLE CHIP PAN
- 2 H.P. 3/60/230-460 VOLT BLADE DRIVE MOTOR AND ELECTRICAL CONTROLS
