Dual digital 0-30/60V 80/160A regulated dc power supply
DUAL DIGITAL 0-30/60V 80/160A REGULATED DC POWER SUPPLY

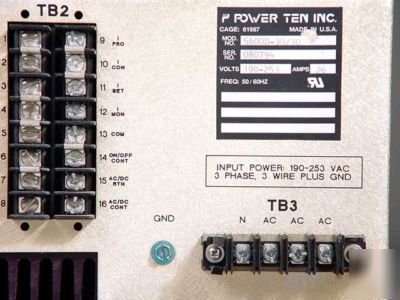

IMPORTANT NOTE: THIS POWER SUPPLY OPERATES ON AND REQUIRES 190-250 VOLTS 3-PHASE AC, 50/60HZ, @ 26-AMPS INPUT POWER.
THIS IS THE IDEAL PIECE OF PROFESSIONAL TEST GEAR FOR YOUR BENCH TO CHECK OUT AND EVALUATE ANY ELECTRONIC OR ELECTRICAL EQUIPMENT THAT OPERATES ON VOLTAGES UP TO 30VOLTS AND DRAWS AS MUCH AS 80 AMPS SUCH AS MANY 12, 24, OR 30 VOLT AVIONICS EQUIPMENT, RADIOS, INTERCOMS, GYROS, INSTRUMENTS, MOTORS, LIGHTS ETC.
THIS POWER SUPPLY PROVIDES DUAL OUTPUTS OF 0 - 30V @ 0 -80A OUTPUT EACH WITH PRECISION "TEN-TURN" VARIABLE CONTROL KNOBS FOR VOLTAGE AND CURRENT ADJUSTMENTS. THE DUAL OUTPUTS EACH PROVIDE, 0 - 30 VOLTS @ 0 - 80 AMPS CONSTANT VOLTAGE AND/OR CONSTANT CURRENT (C/V, C/C).
THESE TWO SUPPLY OUTPUTS CAN PROVIDE +/- SUPPLY RAILS OR CAN BE USED INDEPENDENTLY AND IN SERIES FOR GREATER VOLTAGE OR IN PARALLEL FOR GREATER CURRENT OUTPUT.

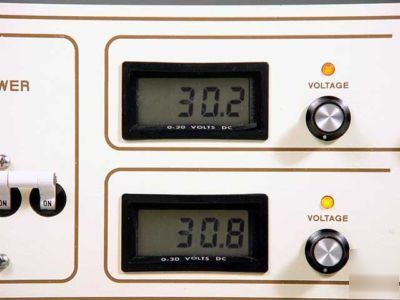

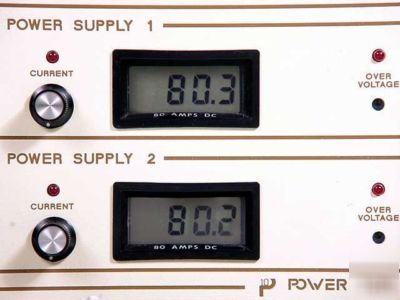

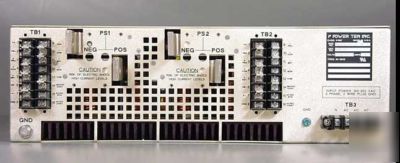

THE DIGITAL METERS PROVIDE PRECISION READINGS OF BOTH VOLTAGE AND CURRENT. THE OUTPUT CONNECTIONS ARE HIGH CURRENT "BUSS-BAR" OUTPUT CONNECTIONS. ALSO, ADDITIONAL REAR PANEL CONNECTIONS PROVIDE REMOTE SENSE AND VOLTAGE programming/TRACKING CAPABILITIES.

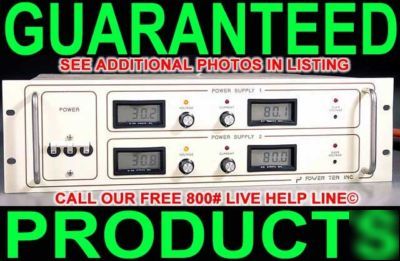

THE POWER TEN 5600D-30/30, IS A DUAL OUTPUT PRECISION REGULATED DC LAB SUPPLY THAT CAN BE UTILIZED FOR ANY APPLICATION IN ELECTRONIC CIRCUIT DESIGN OR REPAIR.
POWER TEN 5600D-30/30 DUAL DC POWER SUPPLY C70-0784-WH
