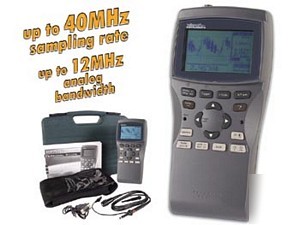

Velleman HPS40 personal scope 40MS/s HPS40
Please note: This is the real Velleman made scope and not an illegal Chinese copy!
Our goal with the HPS40 was to develop a user-friendly, feature-packed and genuinely "hand-held" oscilloscope. A number of characteristics were on our wish list: low noise, high sensitivity, modest weight, a back-lit LCD and a choice between regular batteries or rechargeable ones. Furthermore, the scope also offers a selection of 5 different screen layouts. Both novices and professional users will admire the fast and fully automatic setup function, allowing them to perform measurements without physically touching the unit! Floating measurements are completely safe thanks to the battery-powered operation and the (included) fully insulated measuring probe. These features make the HSP40 indispensable to the professional user, service centers and even to the hobbyist. (HPS40) Features 40MHz sampling rate 12MHz analog bandwidth 0.1mV sensitivity 5mV to 20V/div in 12 steps 50ns to 1hour/div time base in 34 steps full auto set up adjustable trigger level X and Y position signal shift DVM readout audio power calculation (rms and peak) in 2, 4, 8, 16 & 32 ohm dBm, dBV, DC, rms ...measurements signal markers for Volt and Time frequency readout (through markers) recorder function (roll mode) signal storage (2 memories) high resolution LCD 192x112 pixels LCD backlight LCD size: 3" x 1.75" optical isolated RS232 output for PC contains: HPS40 unit user manual flexible carry protection holster insulated safety probe RS232 connection lead (to DB9) handy rigid carry case Specifications power supply: 5 x AA battery or Nicd / NiMH includes battery charging circuit adapter: 9V/ 500mA
