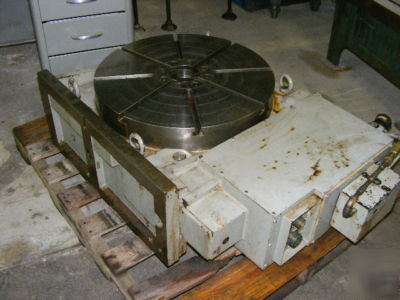

Tsudakoma rncv-600R cnc rotary table
TURNTABLE DIAMETER..............................24.8"
TABLE HEIGHT (HORIZONTAL POSITION)..............12.8"
HEIGHT OF TABLE CENTER (VERTICAL POSITION)......15.748"
OVERALL HEIGHT (VERTICAL POSITION)..............30.51"
DIAMETER OF CENTER BORE.........................2.3622"
DIAMETER OF SPINLDE HOLE........................1.496"
T-SLOT SIZE.....................................0.708
SPEED REDUCTION RATIO...........................1/180
TABLE ROTATION SPEED (@1500 RPM)................8.3 RPM
MAX DIAMETER OF WORKPIECE.......................24"
LOAD CAPACITY...................................1760 LBS (HORIZONTAL)
...................................880 LBS (VERTICAL)
OVERALL DIMENSIONS (APPROXIMATE)................(see attached pdf)
GETTYS-FANUC MODEL 10M SERVO MOTOR
