Tektronix 1503C metalic tdr cable tester test set
Tektronix 1503C Metalic TDR Cable Tester Test Set

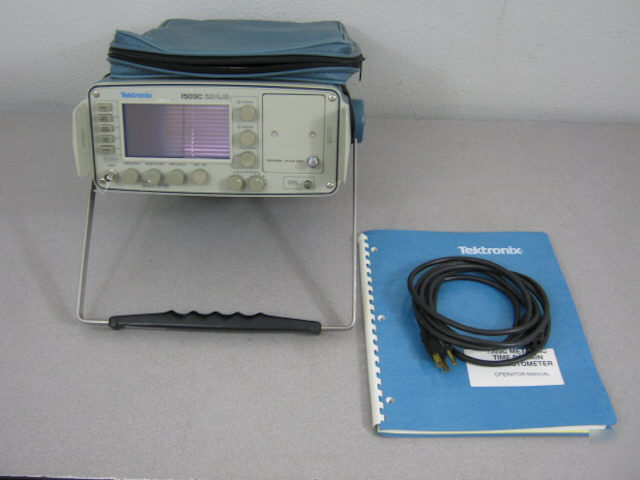

ITEM DESCRIPTION: Used, good physical condition. This unit does power up and is working. The screen is clear and in good condition but I was not able to get a decent photo of it. Any apparent defects on the screen (in the photos) are reflections from the lighting in the room. This unit is surplus from a local government agency and was in use prior to being sold for surplus. It has not been calibrated or tested for accuracy.
ACCESSORIES: Document bag and manual as shown. No front cover, probes, cables, or any other accessories.
Applications include LANs, On-Board Systems and Manufacturing QC. The general purpose 1503C Portable MTDR Cable Tester generates a 1/2 sine pulse, with selectable pulse widths of 2, 10, 100, or 1000 ns. The high-resolution 2 ns pulse permits the identification of multiple faults as close together as one foot. The 1000 ns pulse gives the 1503C a range of 5,000 to 50,000 feet (depending on cable type and condition). The ultra-high-resolution 1503C generates a 200 ps rise time step pulse and has an output impedance of 50-ohms. The fast rise time permits the identification of multiple faults as close together as 0.6 inches. For most TDR applications, where determining distance to an impedance change is the key measurement, the 1503C is the best choice.
MANUFACTURER INFORMATION & DOWNLOADS LINK:
http://www2.tek.com/cmswpt/madetails.lotr?ct=MA&cs=mur&ci=9948&lc=EN
