New apollo 1/2" full port ball valve 83A-143-01

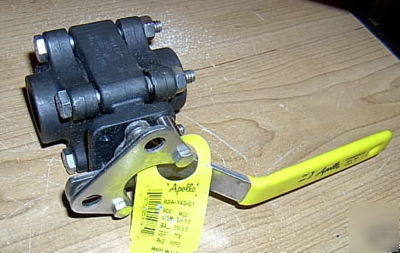

This is for 1 NEW Apollo brand 1/2" carbon steel ball valve. Part # 83A-143-01
83A-140 Series 3-Piece Full Port Carbon Steel 1500 CWP NPT Ball Valve
Standard Compliance - Valve design: MSS SP-110, End Connections: NPT per ASME B1.20.1,
Valve Marking: MSS SP-25, Production Testing: MSS SP-110, NACE MR0175, 2000 edition.
FEATURES
150 psig satura 3-Piece construction w/ enclosed fasteners Two-position locking
Full port Adjustable multi-piece PTFE V style packing
Stainless steel trim & hardware Fully machined ISO 5211 mounting
Swing-out center section Cast bosses on the center-section and end caps
Pressure balanced solid ball for bleed & drain ports
Compression controlled RPTFE gaskets Vacuum service to 29 in of Hg.
Anti-blowout one piece bottom entry stem steam
STANDARD MATERIAL LIST
1. Body ASTM A216-WCB 10. Body Nuts 18-8 Stainless Steel
2. End Caps ASTM A216-WCB 11. Stop Bolts 18-8 Stainless Steel
3. Ball ASTM A276-316SS 12. Gland Bolts 18-8 Stainless Steel
4. Stem ASTM A276-316SS 13. Handle Nut/Screw 300 Series Stainless Steel
5. Seat Multi-Seal 14. Packing Gland ASTM A276-316SS
6. Packing PTFE 15. Gland Plate 300 Series Stainless Steel
7. Stem Bearing PEEK/PTFE 16. Lever Handle 300 Series Stainless Steel
8. Body Gasket RPTFE 17. Lock Plate 300 Series Stainless Steel
9. Body Bolts 18-8 Stainless Steel 18. Stops
